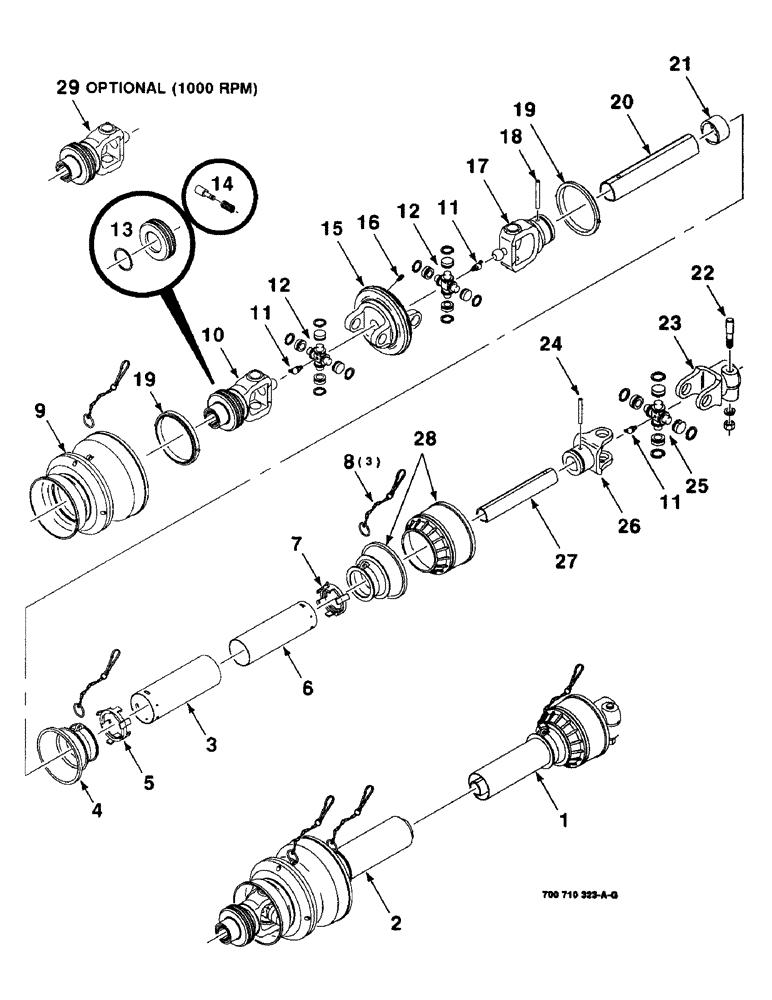

Запчасти Case IH 8480 (2-04) - IMPLEMENT DRIVELINE ASSEMBLY, BONDIOLI, SERIAL NUMBER CFH0051001 THROUGH CFH0053223 Driveline

1

700710323

YOKE

IMPLEMENT HALF ASSEMBLY

1шт.

2

700710322

YOKE

TRACTOR HALF ASSEMBLY (540 RPM)

1шт.

700711140

YOKE

TRACTOR HALF ASSEMBLY (1000 RPM)

1шт.

3

700710329

SHIELD

SAFETY TUBE - tractor

1шт.

4

700712468

SHIELD

CONE - safety

1шт.

5

700707189

SHIELD

BEARING - shield, outer

1шт.

6

700710328

SHIELD

SAFETY TUBE - implement

1шт.

7

700707188

INNER SHIELD

BEARING - shield, inner

1шт.

8

1326632C1

CHAIN

- safety

3шт.

9

700709053

CONE

SHIELD - CV

1шт.

10

700709040

FORK

YOKE ASSEMBLY - tractor (540 rpm) 6 spline (Includes Items 13 and 14)

1шт.

700710341

FORK

YOKE ASSEMBLY - tractor (1000 rpm) 1-3/8-21 spline (Includes Items 13 and 14)

1шт.

11

700707193

NIPPLE, LUBE

ZERK

3шт.

12

700709041

CROSS

AND BEARING KIT

2шт.

13

700707181

COLLAR

AND SNAP RING

1шт.

14

700708790

KIT

PUSH PIN AND SPRING

1шт.

15

700709042

BODY

- CV

1шт.

16

700707187

NIPPLE, LUBE

ZERK

1шт.

17

700709851

FORK

YOKE

1шт.

18

763847

PIN

- spring

1шт.

19

700709047

SHIELD

RING - bearing (Set of two)

1шт.

20

700710324

TUBE

- drive, outer

1шт.

21

700707175

NUT

COLLAR - grease

1шт.

22

700714385

PIN

- special, yoke

1шт.

23

700709853

FORK

YOKE - implement (Includes Item 22)

1шт.

24

700707194

PIN

- spring

1шт.

25

700707171

CROSS

AND BEARING KIT

1шт.

26

700707172

TUBE

YOKE - tube, inner

1шт.

27

700710325

TUBE

- drive, inner

1шт.

28

700709108

SHIELD

- cone, implement

1шт.

29

700710342

FORK

YOKE ASSEMBLY - tractor (1000 rpm) 1-3/4-20 spline ASAE type 3

1шт.
