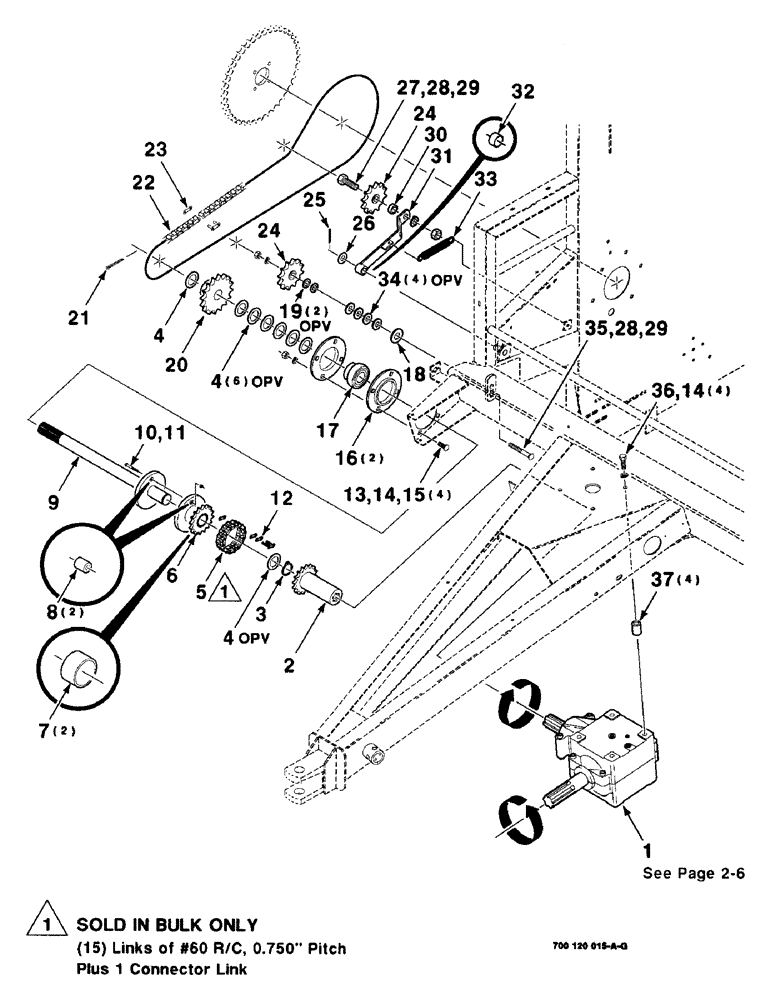

Запчасти Case IH 8480 (2-02) - MAIN DRIVE ASSEMBLY Driveline

1

700709596

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

2

700120864

SPROCKET ASSY.

SPROCKET WA - 60A16 tooth

1шт.

3

740860

RING, SNAP

RING - retaining, external

1шт.

4

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

8шт.

5

1355D

CHAIN (AG)

CHAIN - roller, double #60

1шт.

6

700120849

SPROCKET ASSY.

SPROCKET ASSEMBLY - 16 tooth (Includes Items 7 and 8)

1шт.

7

852459

BRONZE BUSHING

BUSHING - bronze

2шт.

8

700120850

SLEEVE

- shear

2шт.

9

700120854

SHAFT

ASSEMBLY (Includes Item 8)

1шт.

10

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

1шт.

11

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

1шт.

12

241-1326

LINK,12.7mm Pitch

CONNECTOR - link #60 R/C

1шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

16

619333R1

FLANGED BEARING

- bearing

2шт.

17

664598R11

COLLAR

BEARING - spherical

1шт.

REF #17-P/N 664598R11 IS JUST THE LOCKING COLLAR. PER NOTE IN TECH'S P/N, USE P/N 700706182 WHICH IS THE HEAVY DUTY BEARING. P/N 664597R91 IS LISTED AS STANDARD DUTY. BOTH P/NS ARE W/O LOCKING COLLAR. JBEDFORD 6/24/99.

1шт.

18

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

1шт.

19

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

20

700120858

SPROCKET ASSY.

SPROCKET WA 16 TOOTH

1шт.

21

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

22

700710455

CHAIN (AG)

CHAIN - roller, o-ring #80, 1" pitch 97 links plus #80 connector link (Item 23)

1шт.

23

700710454

CONNECTOR, ELEC

LINK - connector, #80 R/C

1шт.

24

51200277

SPROCKET ASSY.

SPROCKET - idler 12 tooth

2шт.

25

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

26

52928

WASHER

3/4 X 14 GAUGE WRMB

1шт.

27

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

1шт.

28

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

29

425-1012

NUT,3/4"-10, G5

2шт.

30

6537310

SPACER

1шт.

31

700120844

ARM

ASSEMBLY - idler (Includes Item 32)

1шт.

32

740787

BRONZE BUSHING

BUSHING - bronze

1шт.

33

700713654

SPRING

- extension

1шт.

34

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

35

11-1248

CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2

3/4-10 X 3 RHSNB

1шт.

36

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

37

700100892

SPACER

4шт.
