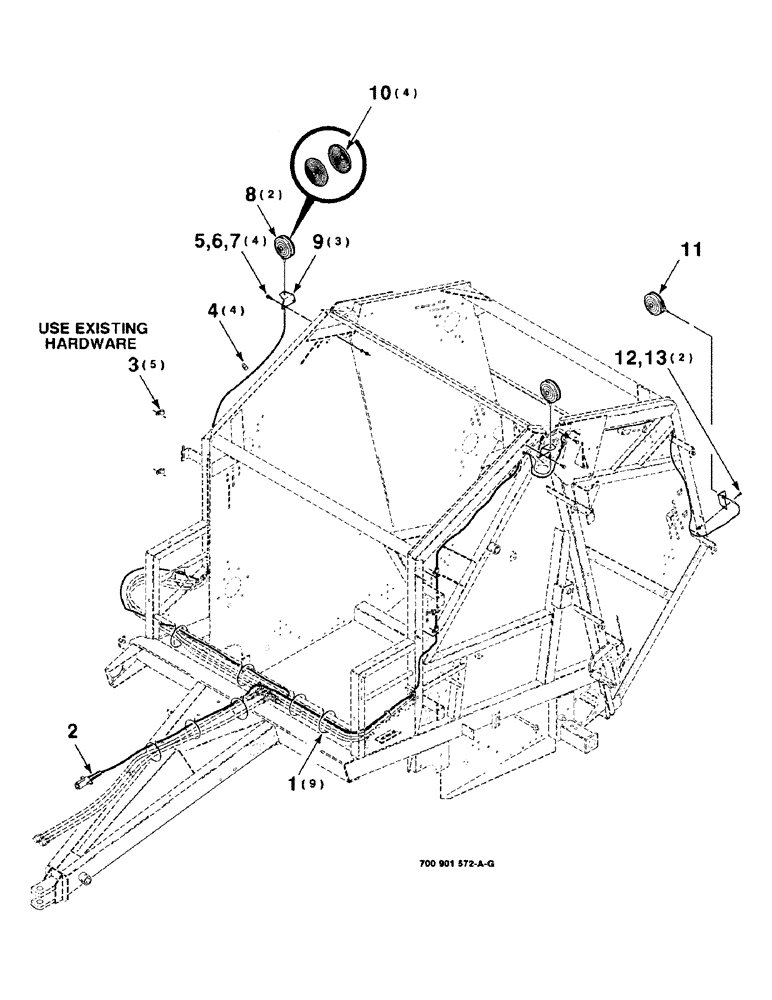

Запчасти Case IH 8480 (9-30) - LIGHT KIT, WARNING, HK50456 LIGHT KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

HK50456

LIGHT KIT (WARNING) COMPLETE

1шт.

1

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

9шт.

2

700707926

HARNESS

- wire

1шт.

3

700708090

CLAMP

- line

5шт.

4

722496

CLIP

- line

4шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

199954A1

PACKAGE

LIGHT - flasher (Includes Item 10)

2шт.

9

700117560

ANGLE

- mounting

3шт.

10

700711749

LENS

- light, flasher

4шт.

11

199956A1

LIGHT

- stop

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

700705121

WIRE

- extension

1шт.

700708074

ELECTRICAL WIRE

WIRE - extension

1шт.

700708075

ELECTRICAL WIRE

WIRE - extension

1шт.

700708090

CLAMP

- line

1шт.

751628

CLAMP

- line

7шт.

722470

MOUNTING CLIP

TIE - nylon

1шт.

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

3шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

701607

BRACKET

1/4-20 X 1/2 HWHTCTS

7шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

3шт.

705038

CONTROL VALVE

3/8"

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.
