Запчасти Case IH 8480 (9-28) - PICKUP BELT DRIVE KIT COMPLETE 700126758, SERIAL NUMBER CFH0051001 THROUGH CFH0051672, Decals & Attachments

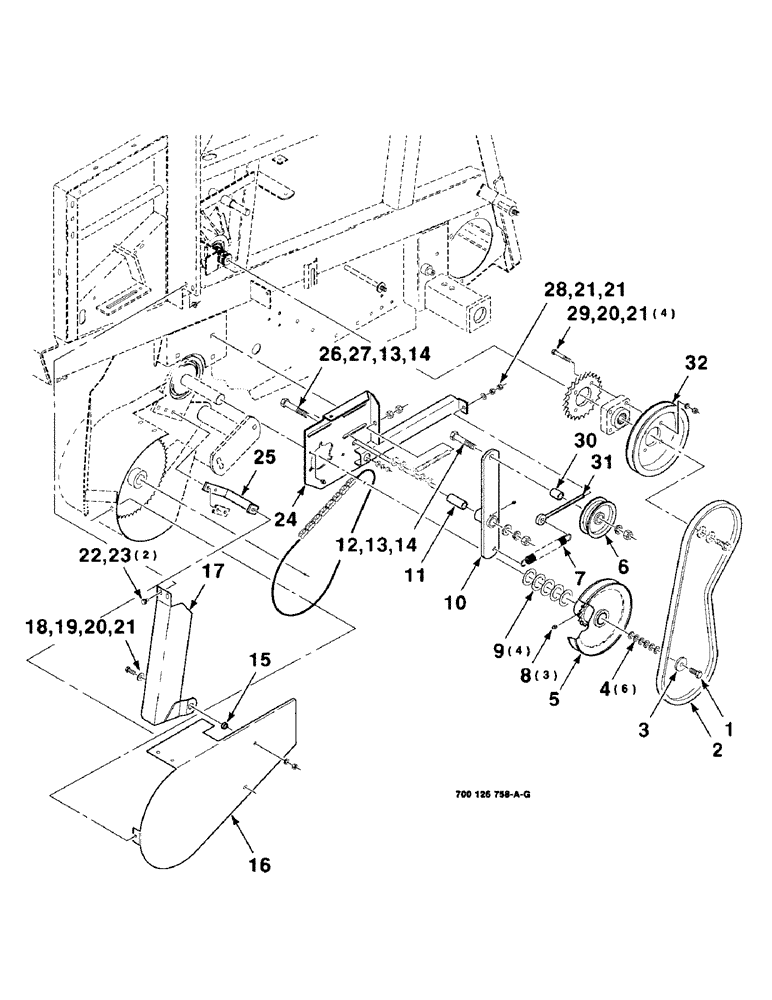

Схема запчастей Case IH 8480 - (9-28) - PICKUP BELT DRIVE KIT COMPLETE 700126758, SERIAL NUMBER CFH0051001 THROUGH CFH0051672, Decals & Attachments
20
29
14
14
1
12
3
10
23
18
15
20
21
7
24
27
2
25
21
6
5
13
30
31
4
21
28
11
13
26
8
9
16
19
22
21
32
17

Артикул

Название

Примечание

Количество

700126758

KIT

PICKUP BELT DRIVE KIT COMPLETE

1шт.

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

2

855064

V-BELT,0.88" W x 69.00" L

1шт.

3

700120270

WASHER

- special

1шт.

4

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GAUGE NRMB

6шт.

5

700126998

SHEAVE

WA

1шт.

6

662958R91

PULLEY

IDLER

1шт.

7

858167

SPRING

- extension

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

9

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 18 GAUGE NRMB

4шт.

10

700126742

ARM

WA

1шт.

11

6179220

SPACER

1шт.

12

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

425-1010

NUT,5/8"-11, G5

2шт.

15

700116106

SPACER

1шт.

16

700126745

SHIELD

WA

1шт.

17

700126747

SHIELD

WA

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

495-21044

WASHER,3/8"

1шт.

20

492-11038

LOCK WASHER,3/8"

5шт.

21

425-106

NUT,3/8"-16, Cl 5

7шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

24

700126751

SUPPORT

WA - left

1шт.

25

700126754

SUPPORT

1шт.

26

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

27

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

28

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

29

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

30

6136964

SPACER

1шт.

31

51200285

SCREW

DRAWBOLT

1шт.

32

700120259

SHEAVE

1шт.

Выбрано товаров: 33
