(8-30) - HYDRAULIC ASSEMBLY, TAILGATE, LEFT

Запчасти Case IH 8465T (8-30) - HYDRAULIC ASSEMBLY, TAILGATE, LEFT (07) - HYDRAULICS

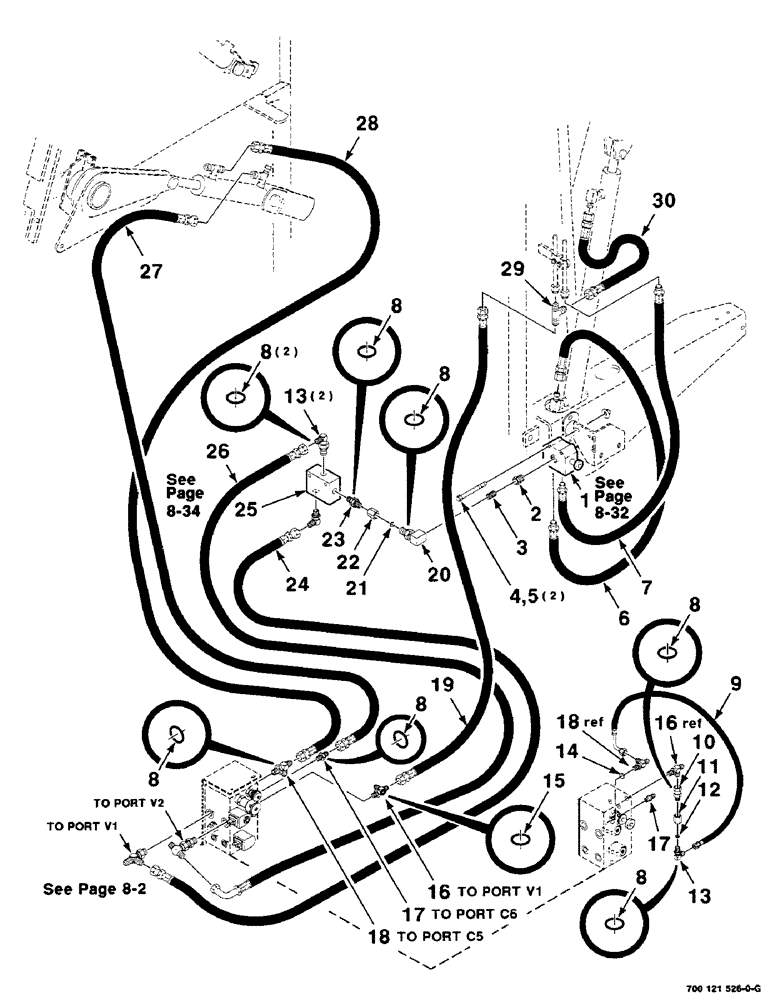

Схема запчастей Case IH 8465T - (8-30) - HYDRAULIC ASSEMBLY, TAILGATE, LEFT (07) - HYDRAULICS
6
20
18
8
12
26
8
8
10
15
30
4
8
8
24
23
17
19
2
1
22
8
7
28
16
11
21
25
16
29
14
3
27
9
13
8
13
18
17
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700704264

VALVE

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer

1шт.

3

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE

1шт.

4

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

6

700708927

HYDRAULIC HOSE,9.65 mm ID x 850.00 mm, SAE 100R2

9.65 mm ID x 850.00 mm, SAE 100R2

1шт.

7

700708929

HYDRAULIC HOSE,9.65 mm ID x 1040.00 mm, SAE 100R2

9.65 mm ID x 1040.00 mm, SAE 100R2

1шт.

8

738468

O-RING

8шт.

9

700712460

HOSE

- hydraulic

1шт.

10

700709216

ADAPTER

- swivel (includes item 8)

1шт.

11

700120630

COUPLING

- special, plated

1шт.

12

700712615

ORIFICE

PLATE - orifice

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(includes item 8) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

3шт.

14

700707872

ORIFICE

- plate, .081

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

700701638

3 WAY CONNECTION

TEE - straight run (includes item 15)

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - flared (includes item 8)

2шт.

18

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 8) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

19

700711098

HYDRAULIC HOSE,9.65 mm ID x 1100.00 mm, SAE J516

9.65 mm ID x 1100.00 mm, SAE J516

1шт.

20

7791916

ELBOW

(includes item 8)

1шт.

21

700712162

ORIFICE

1шт.

22

700120630

COUPLING

1шт.

23

700711972

UNION

ADAPTOR (includes item 8)

1шт.

24

700712518

HYDRAULIC HOSE,9.65 mm ID x 950.00 mm, SAE 100R2, SAE J 517

9.65 mm ID x 950.00 mm, SAE 100R2, SAE J517

1шт.

25

700712458

VALVE

ASSEMBLY

1шт.

26

700712460

HOSE

- hydraulic

1шт.

27

1270453C1

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

28

7796287

HOSE

- hydraulic

1шт.

29

218-594

TEE,3/4"-16, 37 Degree

- flared

1шт.

30

700708926

HYDRAULIC HOSE,9.65 mm ID x 600.00 mm, SAE 100R2

9.65 mm ID x 600.00 mm, SAE 100R2

1шт.
