Запчасти Case IH 8465T (8-28) - HYDRAULIC ASSEMBLY, CROSS LINES (07) - HYDRAULICS

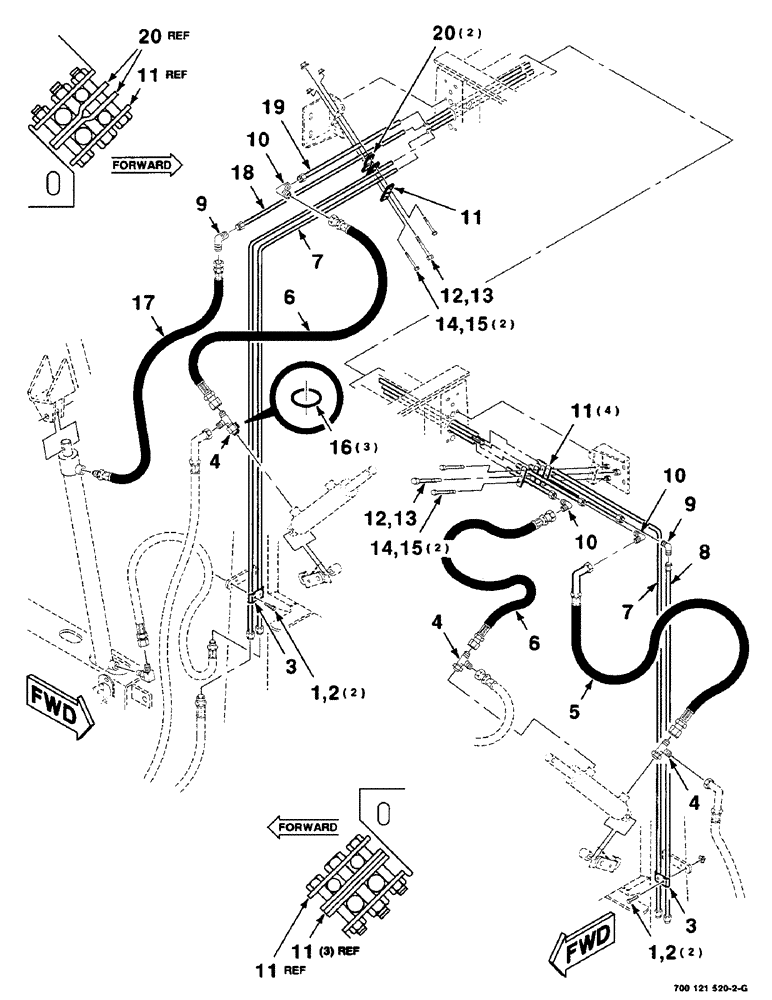

Схема запчастей Case IH 8465T - (8-28) - HYDRAULIC ASSEMBLY, CROSS LINES (07) - HYDRAULICS
2
10
19
11
6
12
7
1
16
4
11
11
20
10
6
2
14
15
13
5
7
11
9
3
18
14
20
17
8
15
10
13
4
4
1
3
12
9
11

Артикул

Название

Примечание

Количество

1

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

3

700116034

CLAMP

- line

2шт.

4

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 16) 9/16"-18, 37º x 9/16"-18, O-Ring Run

3шт.

5

700707286

HOSE

- hydraulic

1шт.

6

8042715

HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

2шт.

7

700709922

TUBE,12.7 mm OD, 1907, 880 mm Length

LINE - hydraulic

2шт.

8

700708717

TUBE,12.7 mm OD, 856 mm Length

LINE - hydraulic

1шт.

9

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

union 90º, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

10

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

90 DEGREE ELBOW - union

3шт.

11

700118602

STRAP

5шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

14

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

15

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

4шт.

16

738468

O-RING

3шт.

17

700708714

HOSE ASSY.

HOSE - hydraulic

1шт.

18

700707434

LINE

- hydraulic

1шт.

19

700707435

LINE

- hydraulic

1шт.

20

700118605

STRAP

2шт.

Выбрано товаров: 20
