(8-26) - HYDRAULIC CYLINDER ASSEMBLY,TAILGATE, SERIAL NUMBER CFH0074012 AND LATER

Запчасти Case IH 8465T (8-26) - HYDRAULIC CYLINDER ASSEMBLY,TAILGATE, SERIAL NUMBER CFH0074012 AND LATER (07) - HYDRAULICS

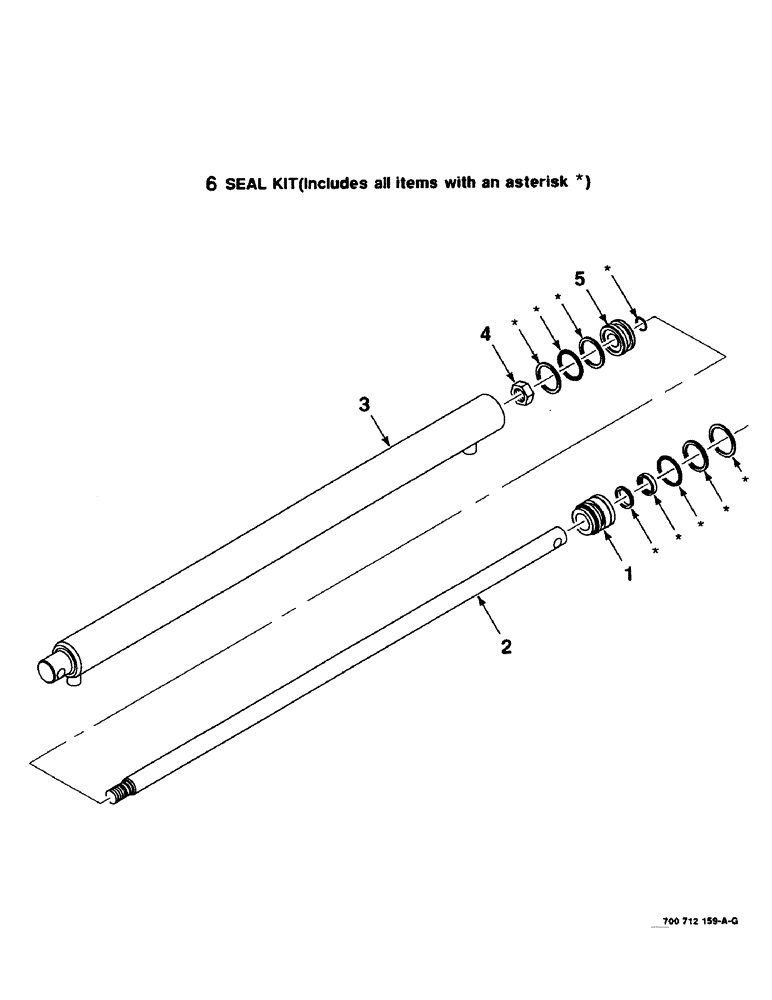

Схема запчастей Case IH 8465T - (8-26) - HYDRAULIC CYLINDER ASSEMBLY,TAILGATE, SERIAL NUMBER CFH0074012 AND LATER (07) - HYDRAULICS
6
1
3
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712159

CYLINDER ASSY.

HYDRAULIC CYLINDER COMPLETE

1шт.

1

700712477

GUIDE

1шт.

2

700712478

ROD

1шт.

3

700712479

BODY

- cylinder

1шт.

4

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

5

700712480

PISTON

1шт.

6

700712176

GASKET KIT

SEAL KIT

1шт.
