(8-14) - HYDRAULIC CYLINDER ASSEMBLY, KICKER, 700712161 HYDRAULIC CYLINDER COMPLETE, 2" BORE BY 12" STROKE

Запчасти Case IH 8465T (8-14) - HYDRAULIC CYLINDER ASSEMBLY, KICKER, 700712161 HYDRAULIC CYLINDER COMPLETE, 2" BORE BY 12" STROKE (07) - HYDRAULICS

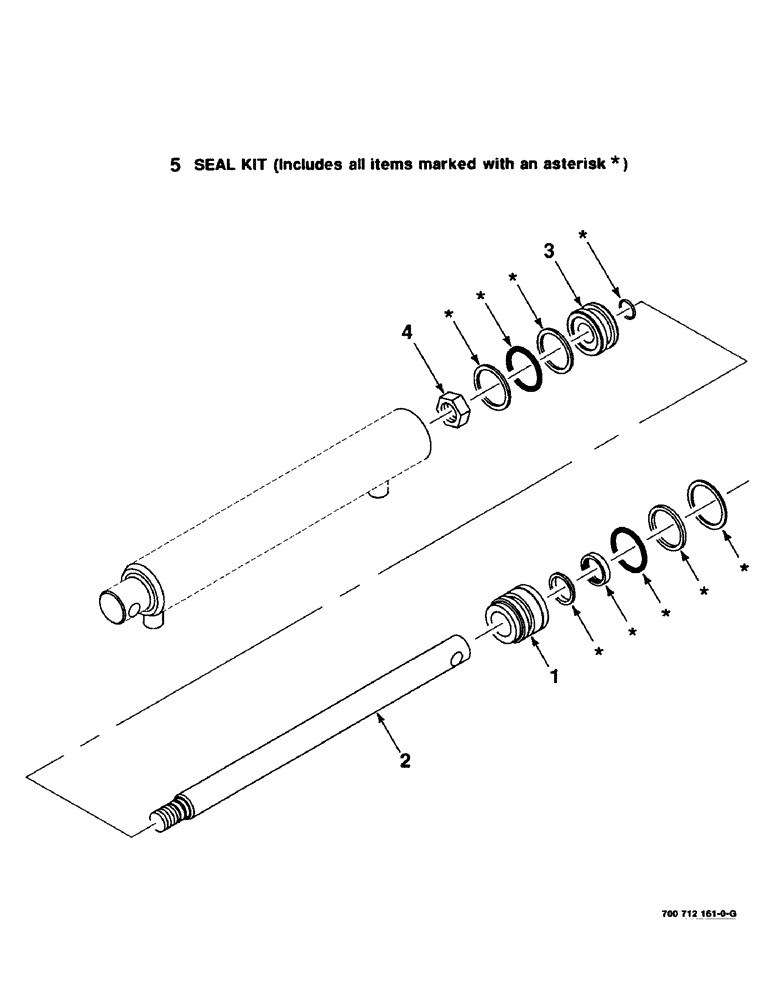

Схема запчастей Case IH 8465T - (8-14) - HYDRAULIC CYLINDER ASSEMBLY, KICKER, 700712161 HYDRAULIC CYLINDER COMPLETE, 2" BORE BY 12" STROKE (07) - HYDRAULICS
2
4
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

HYDRAULIC CYLINDER COMPLETE

1шт.

1

700711112

GUIDE

- rod

1шт.

2

700707421

ROD

1шт.

3

700707419

PISTON

1шт.

4

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

5

700711114

SEAL KIT

SEAL KIT

1шт.
