(8-10) - HYDRAULIC CONTROL VALVE ASSEMBLY, CONTD, 700715719 CONTROL VALVE ASSY. COMPLETE, CONTD FROM PG 8-8

Запчасти Case IH 8465T (8-10) - HYDRAULIC CONTROL VALVE ASSEMBLY, CONTD, 700715719 CONTROL VALVE ASSY. COMPLETE, CONTD FROM PG 8-8 (07) - HYDRAULICS

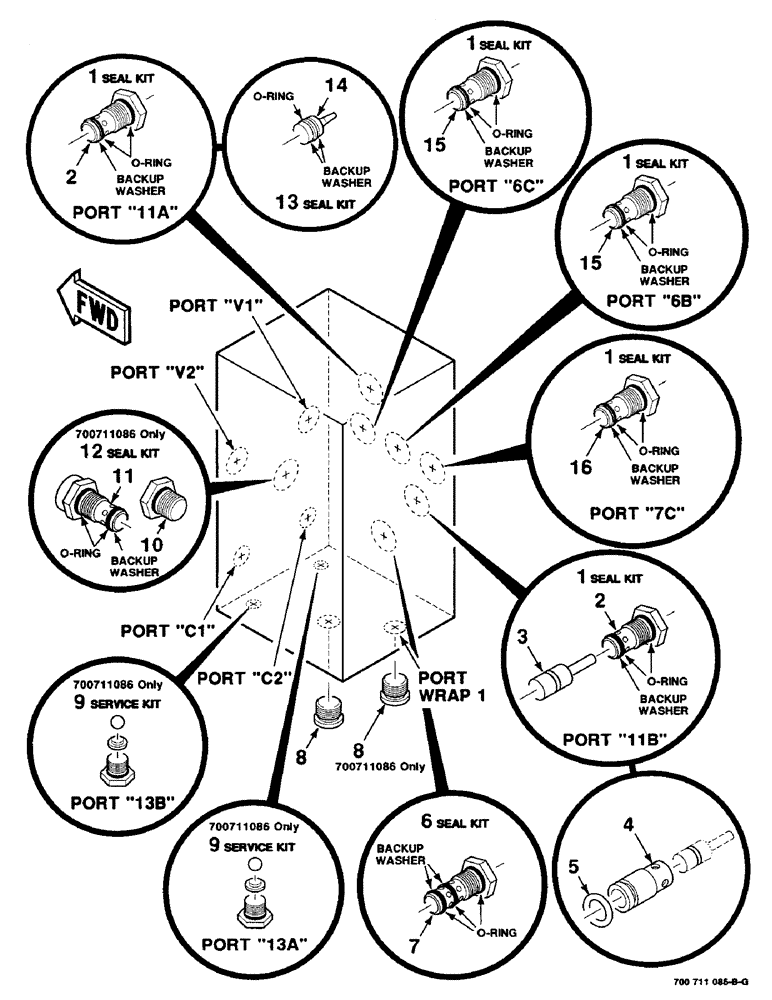

Схема запчастей Case IH 8465T - (8-10) - HYDRAULIC CONTROL VALVE ASSEMBLY, CONTD, 700715719 CONTROL VALVE ASSY. COMPLETE, CONTD FROM PG 8-8 (07) - HYDRAULICS
14
4
9
7
15
8
15
5
10
2
1
1
1
3
11
6
2
16
1
13
1
12
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

149942C1

SEAL KIT

6шт.

2

700707833

VALVE, CHECK

VALVE - check

2шт.

3

700712597

PISTON

- pilot (S.N. CFH0074193 and later)

1шт.

4

700127923

SLEEVE

(S.N. CFH0074001 thru CFH0074192)

1шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk (S/N CFH0074001 thru CFH0074192)

1шт.

6

700706152

SEAL KIT

1шт.

7

700712619

VALVE

- check

1шт.

8

700707840

PLUG

#6 SAE O-RING PLUG

2шт.

9

700711693

KIT

SERVICE KIT (includes o-ring plug, spring guide & ball)

2шт.

10

700713868

PLUG

- cavity (S.N. CFH0074786 and later)

1шт.

11

700711136

VALVE

- spool (S.N. CFH0074001 thru CFH0074785)

1шт.

12

700711711

SEAL KIT

KIT

1шт.

13

700712631

SEAL

KIT

1шт.

14

700710891

PISTON

- pilot

1шт.

15

700709237

VALVE POPPET

VALVE - check

2шт.

16

700707831

VALVE

- check

1шт.
