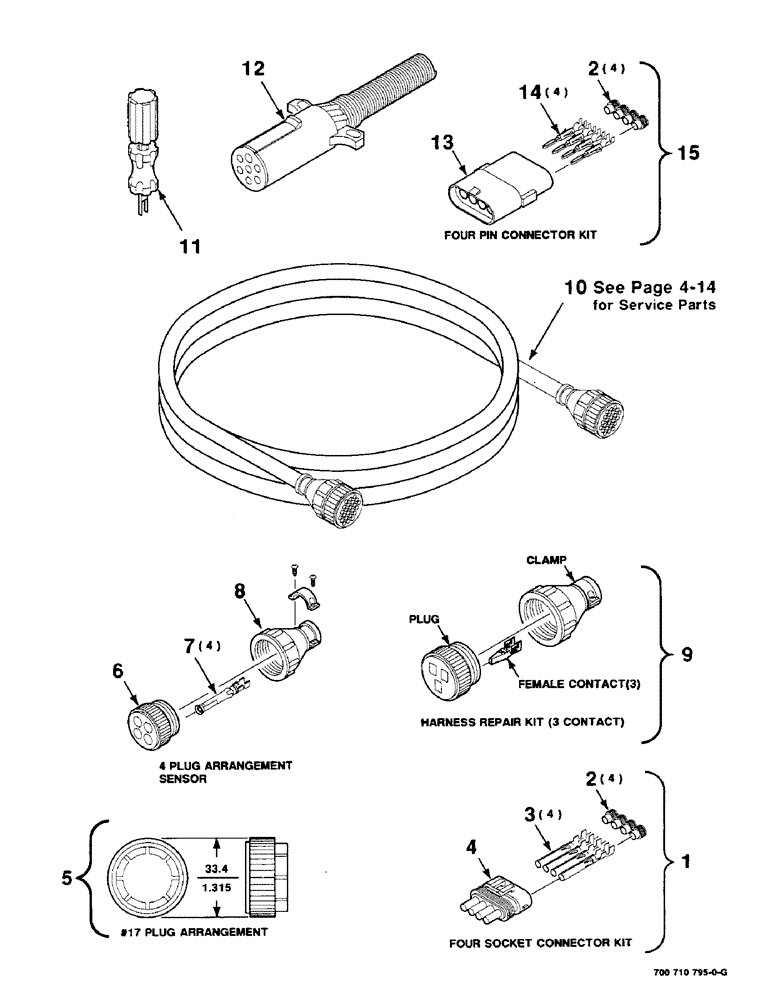

Запчасти Case IH 8465T (4-16) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL

1

700707002

REPAIR KIT

FOUR WAY - connector repair kit, female (includes items 2, 3 and 4)

1шт.

2

700706400

PLUG

SEAL

1шт.

3

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- socket (18-20 gauge wire)

1шт.

4

700708963

WIRE CONNECTOR

FOUR WAY - connector, female

1шт.

5

1301191C1

CONNECTION

RING - coupling (#17 plug arrangement)

1шт.

6

700709232

POWER SOCKET

RECEPTACLE - standard sex (4 pin)

1шт.

7

700713574

SOCKET

CONTACT - female

1шт.

8

1994741C1

CONTACT HOUSING

CLAMP (shell size 11)

1шт.

9

1714005

PACKAGE,SERVICE

KIT - harness repair (female end)

1шт.

10

700712135

WIRE HARNESS

HARNESS - wire

1шт.

11

700707014

TERMINAL CONNECTOR

TOOL CONNECTOR REPAIR

1шт.

12

700715341

PLUG

- 7 pin domestic

1шт.

13

700708964

WIRE CONNECTOR

FOUR WAY - connector, male

1шт.

14

700706401

TERMINAL

PIN - terminal (18-20 gauge wire)

1шт.

15

700709354

REPAIR KIT

FOUR WAY - shroud connector repair kit (includes items 2, 8 and 9)

1шт.
