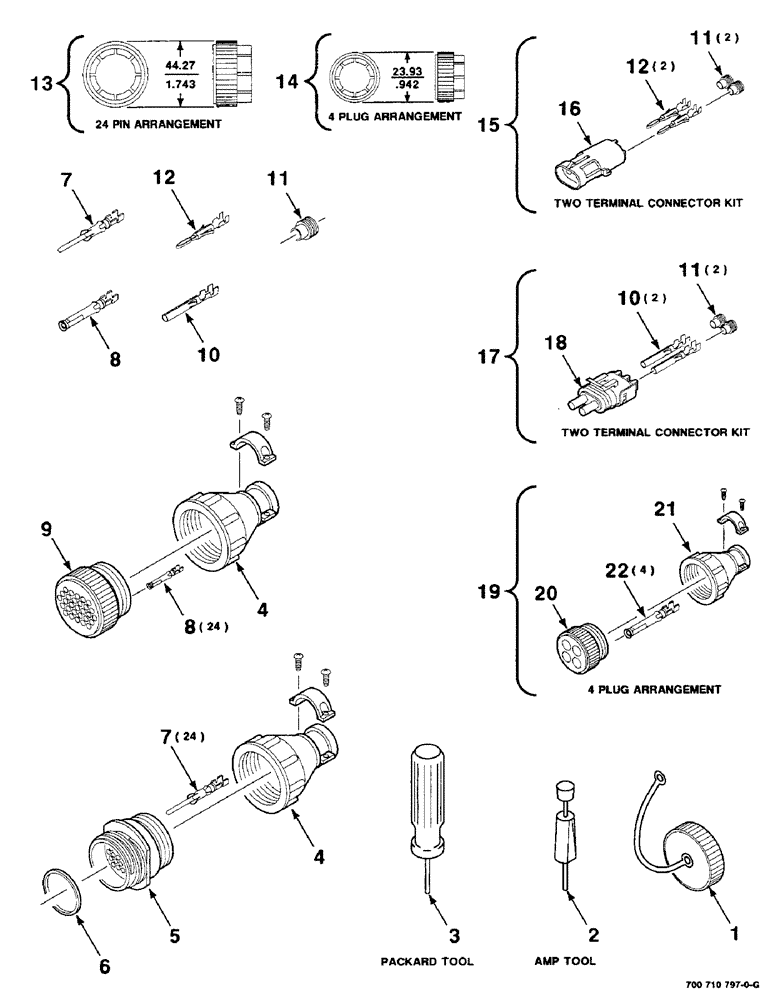

Запчасти Case IH 8465T (4-14) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

1

700711664

CAP

- sealing

1шт.

2

131503C1

TOOL

- connector repair (amp)

1шт.

3

700707012

TERMINAL CONNECTOR

TOOL - connector repair (packard)

1шт.

4

245491C1

ELEC CONNECTOR

CLAMP - cable (shell size 23)

1шт.

5

700711255

ROD, CONNECTING

RECEPTACLE - 24 pin male

1шт.

6

700711660

SEAL

- peripheral

1шт.

7

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN

1шт.

8

700708758

TERMINAL

SOCKET

1шт.

9

131498C1

ELEC CONNECTOR

PLUG - 24 pin female

1шт.

10

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- socket

1шт.

11

700706400

PLUG

SEAL

1шт.

12

700706401

TERMINAL

PIN - terminal (18-20 gauge)

1шт.

13

60-6129T2

CONNECTION

RING - coupling

1шт.

14

60-6126T2

CONNECTION

RING - coupling

1шт.

15

700708753

REPAIR KIT

KIT - harness repair (includes items 11, 12 and 16)

1шт.

16

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR - shroud (two way)

1шт.

17

700706999

REPAIR KIT

KIT - harness repair (includes items 10, 11 and 18)

1шт.

18

245482C1

ELEC CONNECTOR,2 Pin

CONNECTOR - female

1шт.

19

700712132

REPAIR KIT

RECEPTACLE REPAIR KIT (includes items 20, 21 and 22)

1шт.

20

700709232

POWER SOCKET

RECEPTACLE - standard sex (4 pin)

1шт.

21

700709233

CLAMP

(shell size 11)

1шт.

22

700718607

TERMINAL

CONTACT - female

1шт.
