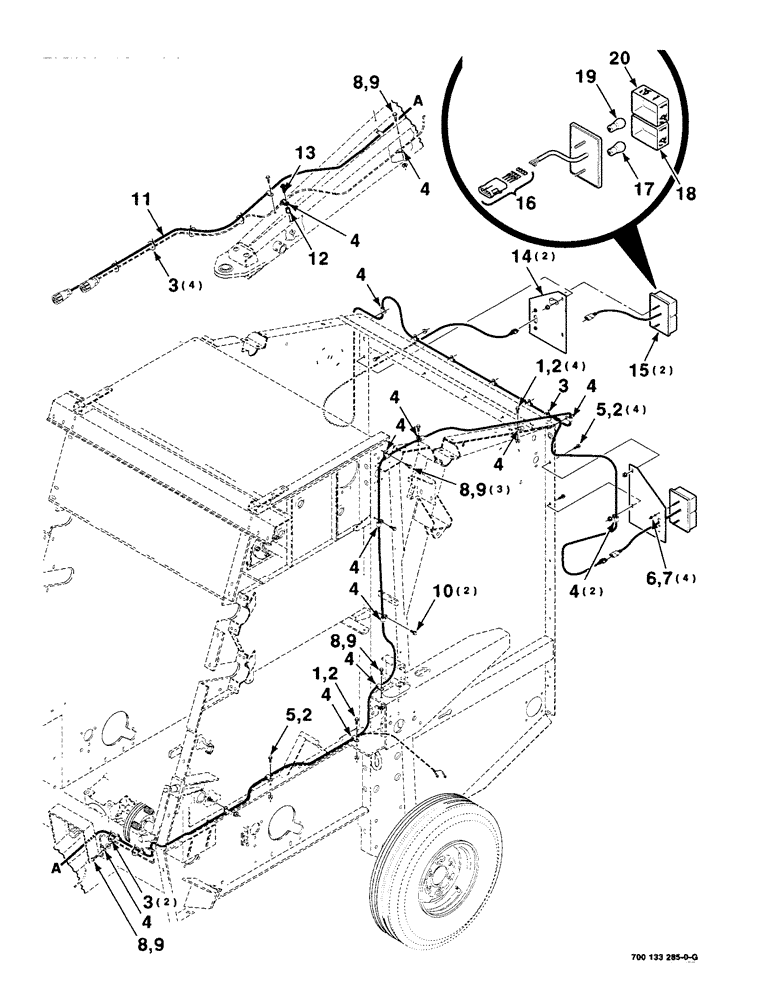

Запчасти Case IH 8465T (4-10) - LIGHTING ASSEMBLY (06) - ELECTRICAL

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

5шт.

2

231-5146

FLANGE NUT,3/8"-16

10шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

14шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

5шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

7

825-1405

NUT,M5, Cl 8

4шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN

6шт.

10

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

2шт.

11

700715352

HARNESS

- wire

1шт.

12

568395R1

SPACER,5/8" Tube x 5/8"

1шт.

13

73528

SELF-TAP SCREW

3/8-16 X 1-1/2 HWHTCTS

1шт.

14

700131900

PLATE

- light (S.N. CFH-0074001 thru CFH-0075001)

2шт.

700147097

PLATE

- light (S.N. CFH-0075010 and later)

2шт.

15

700714721

LAMP

LIGHT - tail (S.N. CFH-0074001 thru CFH-0075009)

2шт.

700716461

TAIL LAMP

LIGHT - tail (S.N. CFH-0075010 and later)

2шт.

16

700709354

REPAIR KIT

KIT - repair, connector

1шт.

17

700717381

BULB

1шт.

18

700717386

LENS

- red

1шт.

19

700717385

BULB

1шт.

20

700717417

LENS

- amber

1шт.
