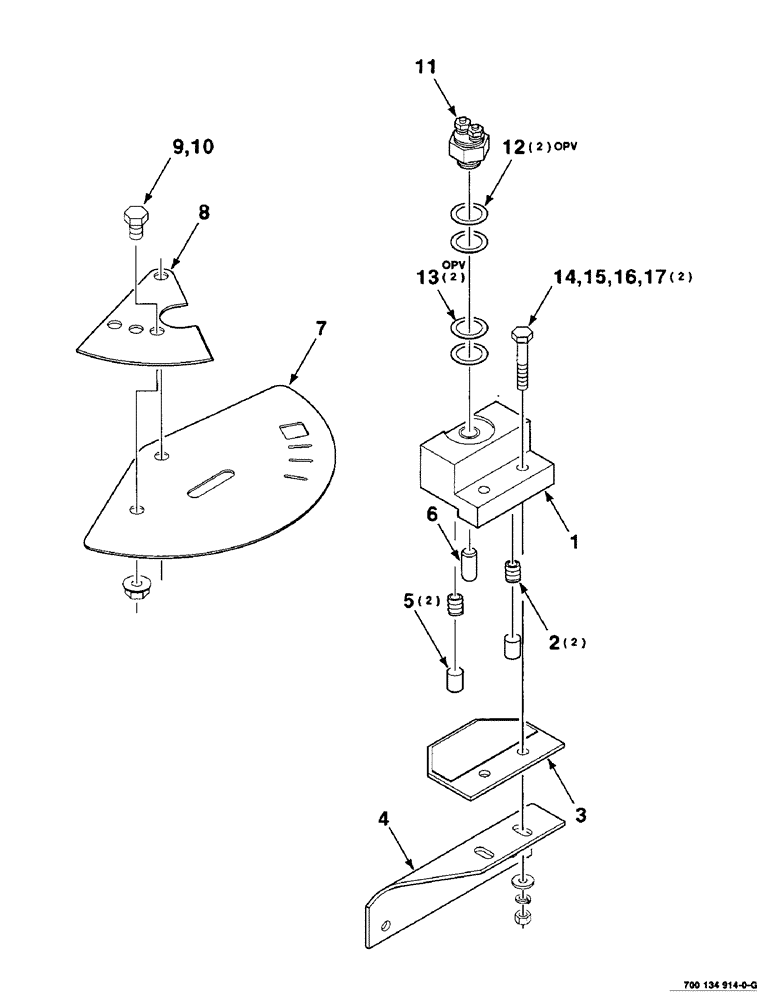

Запчасти Case IH 8465T (4-04) - SWITCH ASSEMBLY , 700134914 SWITCH ASSEMBLY COMPLETE (06) - ELECTRICAL

700134914

SWITCH

ASSEMBLY COMPLETE

1шт.

1

700130713

MOUNTING PARTS

MOUNTING - switch

1шт.

2

858183

SPRING

- compression

2шт.

3

700127956

PLATE

- wear, assembly

1шт.

4

700127896

SUPPORT

1шт.

5

700122575

BUTTON

- nylon

2шт.

6

700129393

BUTTON

PLUNGER - nylon

1шт.

7

700127953

DISC

- switching

1шт.

8

700127003

PLATE

- delay

1шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

11

8025637

SWITCH

1шт.

12

700713335

WASHER

SHIM - washer

2шт.

13

700712515

WASHER

- washer

2шт.

15

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

425-104

NUT,1/4"-20, Cl 5

2шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
