(3-10) - PICKUP ROTOR ASSEMBLY, SERIAL NUMBER CFH0074012 AND LATER

Запчасти Case IH 8465T (3-10) - PICKUP ROTOR ASSEMBLY, SERIAL NUMBER CFH0074012 AND LATER Pickup

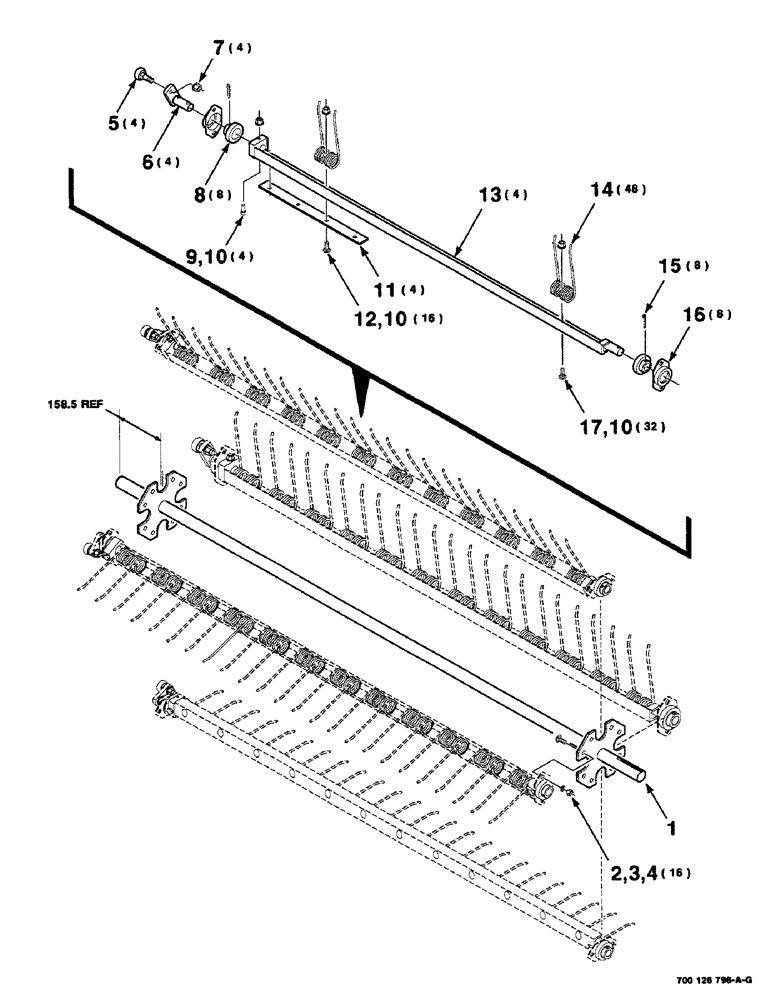

Схема запчастей Case IH 8465T - (3-10) - PICKUP ROTOR ASSEMBLY, SERIAL NUMBER CFH0074012 AND LATER Pickup
11
10
4
16
5
7
15
12
9
1
13
6
2
10
14
8
10
3
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700126798

ROTOR

WA

1шт.

2

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

16шт.

3

492-11038

LOCK WASHER,3/8"

16шт.

4

425-106

NUT,3/8"-16, Cl 5

16шт.

5

700705612

CAM FOLLOWER

BEARING - cam, follower

4шт.

6

700108618

ARM

CRANK WA

4шт.

7

702700045

LOCK NUT

1/2-20 SPIRALOCK

4шт.

8

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

8шт.

9

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS SPL

4шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

52шт.

11

700125083

STRAP

4шт.

12

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

16шт.

13

700119965

ANGLE BAR

ANGLE WA

4шт.

14

700709760

TINE

TINE - double

48шт.

15

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

16

700108622

FLANGED BEARING

FLANGE - bearing

8шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

32шт.
