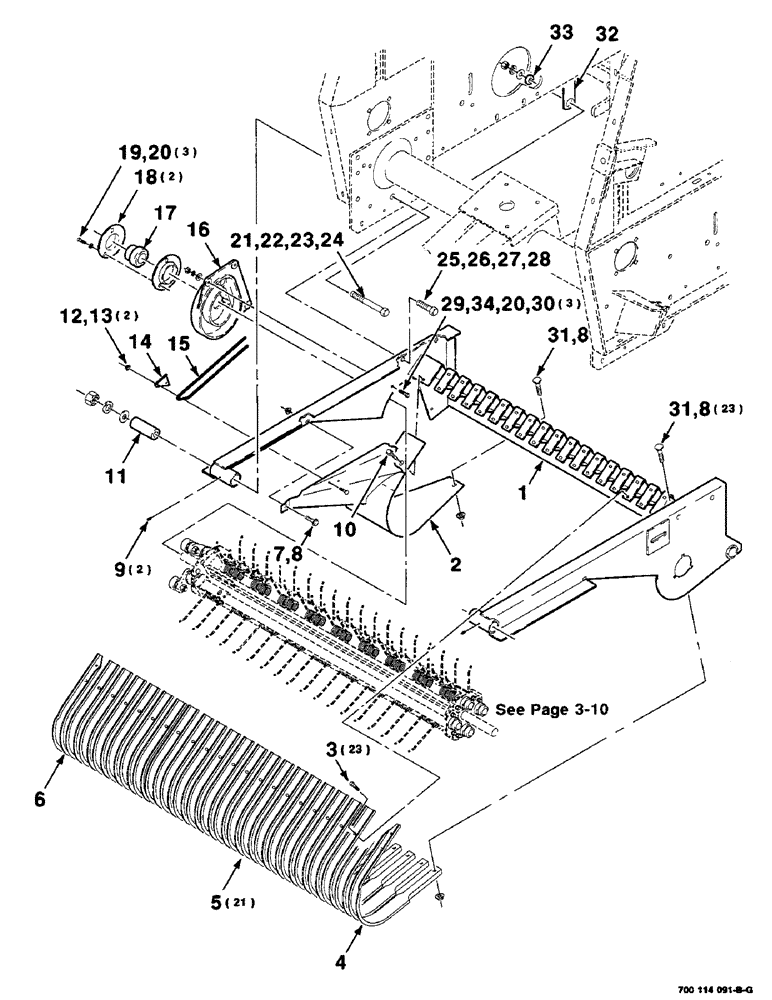

Запчасти Case IH 8465T (3-06) - PICKUP, WRAPPERS AND CAM ASSEMBLY, SERIAL NUMBER CFH0074012 AND LATER Pickup

1

700114119

FRAME

WA - pickup

1шт.

2

700114136

DEFLECTOR

- wa, right

1шт.

3

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

23шт.

4

700122837

TOOTH

WRAPPER - tine, left

1шт.

5

700114144

GUARD

WRAPPER - tine

21шт.

6

700122840

TOOTH

WRAPPER - tine, right

1шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

25шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

11

700114172

TUBE,38.1 mm OD, 102 mm Length

- pickup, pivot

1шт.

12

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

2шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

14

700125085

RETAINER

- right

1шт.

15

700710929

SHIELD

- hay

1шт.

16

700116125

HOUSING

TRACK - cam

1шт.

17

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

1шт.

18

617863R1

FLANGED BEARING

- bearing

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

20

492-11038

LOCK WASHER,3/8"

6шт.

21

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

1шт.

22

495-21081

WASHER,3/4"

1шт.

23

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

24

425-1012

NUT,3/4"-10, G5

1шт.

25

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

26

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

28

425-1010

NUT,5/8"-11, G5

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

30

425-106

NUT,3/8"-16, Cl 5

3шт.

31

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

24шт.

32

700114170

STRAP

1шт.

33

378521

SPACER

1шт.

34

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.
