(3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0074001 THROUGH CFH0074011

Запчасти Case IH 8465T (3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0074001 THROUGH CFH0074011 Pickup

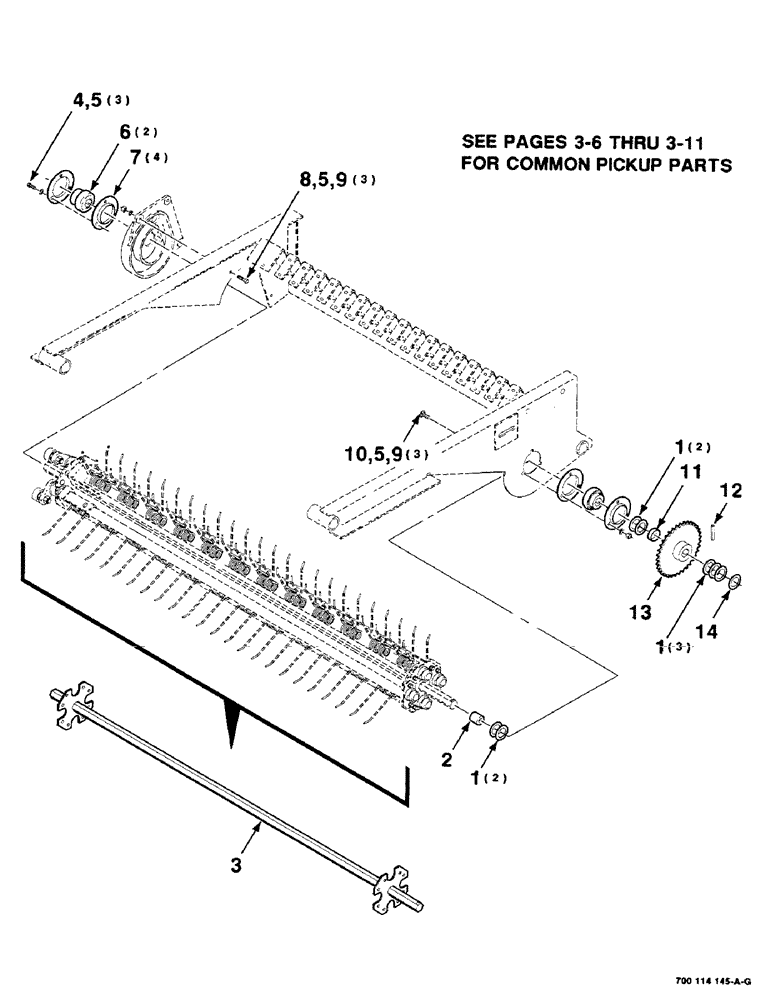

Схема запчастей Case IH 8465T - (3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0074001 THROUGH CFH0074011 Pickup
6
4
1
1
9
7
13
9
5
11
3
1
5
12
2
10
14
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

52282

BUSHING

1-1/2 X 14 GAUGE NRMB

7шт.

2

700114174

SPACER

1шт.

3

700114148

ROTOR

WA

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

5

492-11038

LOCK WASHER,3/8"

9шт.

6

713834

BUSHING

2шт.

7

617863R1

FLANGED BEARING

- bearing

4шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

9

425-106

NUT,3/8"-16, Cl 5

6шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

11

395871

SPACER

1шт.

12

20767R1

PIN,3/8" x 2 1/4", Coiled

3/8" x 2 1/4", Coiled

1шт.

13

700117122

SPROCKET ASSY.

SPROCKET WA - 50B35 tooth

1шт.

14

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

1шт.
