Запчасти Case IH 8465T (9-86) - MESH WRAP SPOOL KIT, SERIAL NUMBER CFH0073001 THROUGH CFH0073137 Decals & Attachments

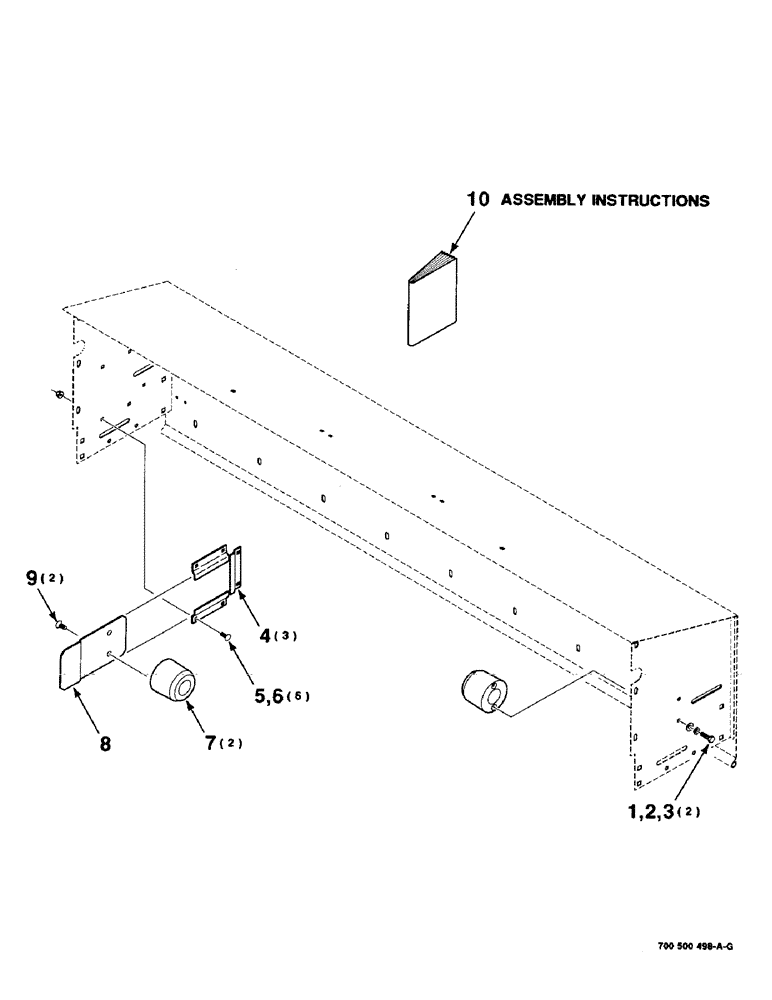

Схема запчастей Case IH 8465T - (9-86) - MESH WRAP SPOOL KIT, SERIAL NUMBER CFH0073001 THROUGH CFH0073137 Decals & Attachments
3
1
4
10
8
6
5
7
2
9

Артикул

Название

Примечание

Количество

1

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

4

700128344

SUPPORT

3шт.

5

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

6шт.

6

1703354

NUT

1/4-20 HFTLN GR/G

6шт.

7

700127924

MOUNTING PARTS

MOUNTING - spool

2шт.

8

700128345

LARGE PLATE

PLATE

1шт.

9

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

5/16-18 X 3/4 HSFCHCS SPECIAL

2шт.

10

700713236

INSTRUCTION

ASSEMBLY INSTRUCTIONS

1шт.

Выбрано товаров: 10
