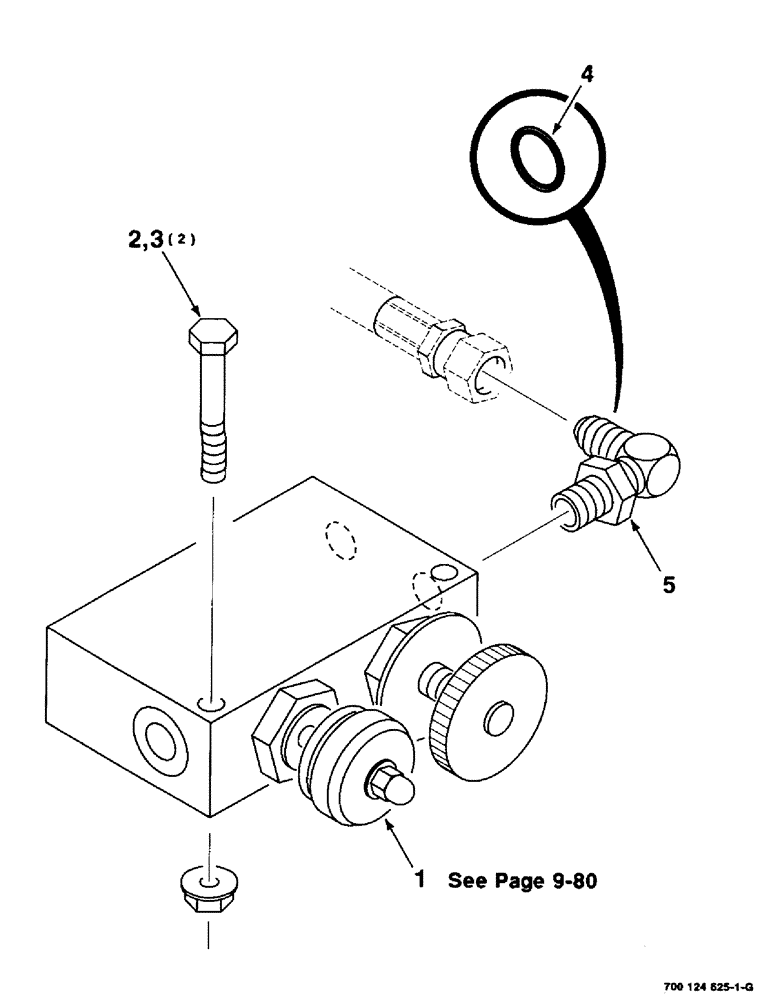

Запчасти Case IH 8465T (9-84) - MESH WRAP HYD. CONTROL VALVE SERVICE KIT, 700124625 HYDRAULIC CONTROL VALVE SERVICE KIT COMPLETE Decals & Attachments

700124625

KIT

CONTROL VALVE SERVICE KIT COMPLETE

1шт.

1

700711967

VALVE

ASSEMBLY - control

1шт.

2

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 DEGREE ELBOW (includes item 4)

1шт.
