Запчасти Case IH 8465T (9-74) - MESH WRAP KIT, SHIELDS AND DECAL ASSEMBLIES , SERIAL NUMBER CFH0073001 THROUGH CFH0073010 Decals & Attachments

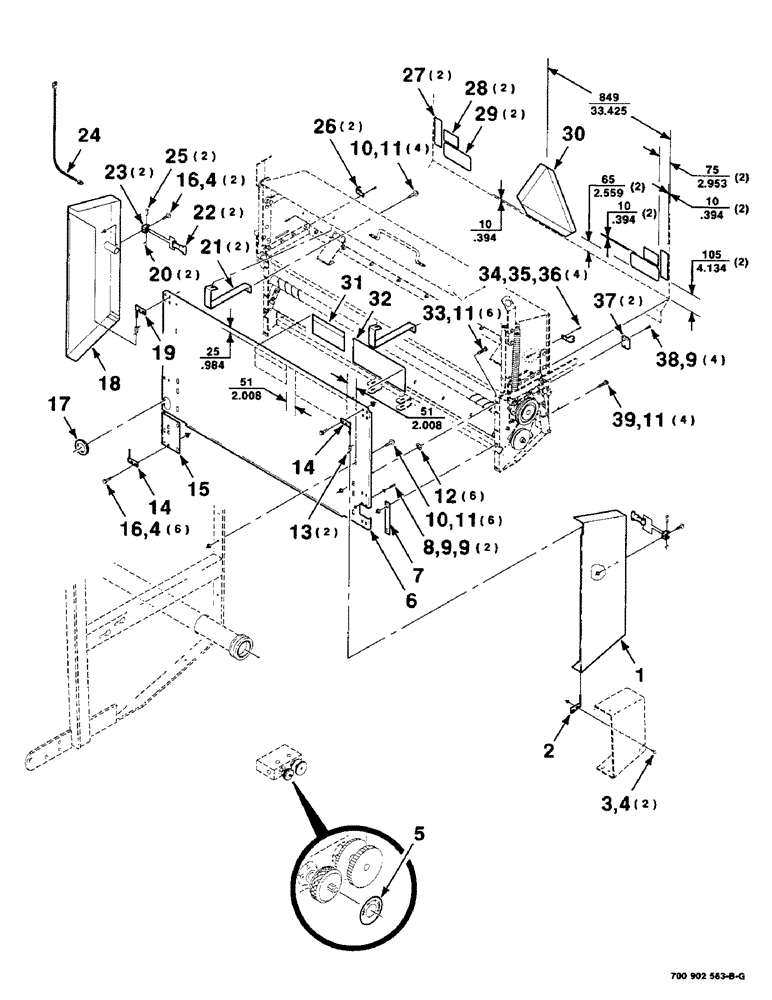

Схема запчастей Case IH 8465T - (9-74) - MESH WRAP KIT, SHIELDS AND DECAL ASSEMBLIES , SERIAL NUMBER CFH0073001 THROUGH CFH0073010 Decals & Attachments
10
22
39
11
28
30
9
16
14
32
12
16
35
3
4
6
13
5
27
8
33
25
19
7
10
17
9
15
9
11
26
11
38
2
18
36
4
14
37
23
4
24
29
20
11
34
21
31

Артикул

Название

Примечание

Количество

1

700125837

SHIELD

WA - left

1шт.

2

700125835

HINGE

WA

1шт.

3

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

5

700711189

DECAL

- net - twine

1шт.

6

700125718

SHIELD

1шт.

7

700125893

PLATE

1шт.

8

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

10шт.

11

231-5146

FLANGE NUT,3/8"-16

20шт.

12

700711334

FASTENER

- push on

6шт.

13

700711020

SPRING

- torsion

2шт.

14

700125832

HINGE

WA

2шт.

15

700125719

SHIELD

1шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

17

727248

GROMMET

- rubber

1шт.

18

700125841

SHIELD

WA - right

1шт.

19

700125834

HINGE

WA

1шт.

20

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

21

700125844

SLEEVE

SUPPORT

2шт.

22

494307C1

LATCH

HOOK - rubber

2шт.

23

776674

SUPPORT

ANCHOR

2шт.

24

700711083

HARNESS

- wire

1шт.

25

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

2шт.

26

7025075

BRACKET

2шт.

27

878660

REFLECTOR

- red

2шт.

28

700711322

DECAL

- caution

2шт.

29

700706191

DECAL

- warning, injury

2шт.

30

311858A1

DECAL

SMV EMBLEM

1шт.

31

700711130

DECAL

- notice

1шт.

32

700711129

DECAL

- operational

1шт.

33

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

6шт.

34

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

35

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

36

225-14110

NUT,#10-24

4шт.

37

700710930

PAD

2шт.

38

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

4шт.

39

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

Выбрано товаров: 39
