Запчасти Case IH 8465T (9-72) - MESH WRAP KIT, ROLLER SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0073011 AND LATER Decals & Attachments

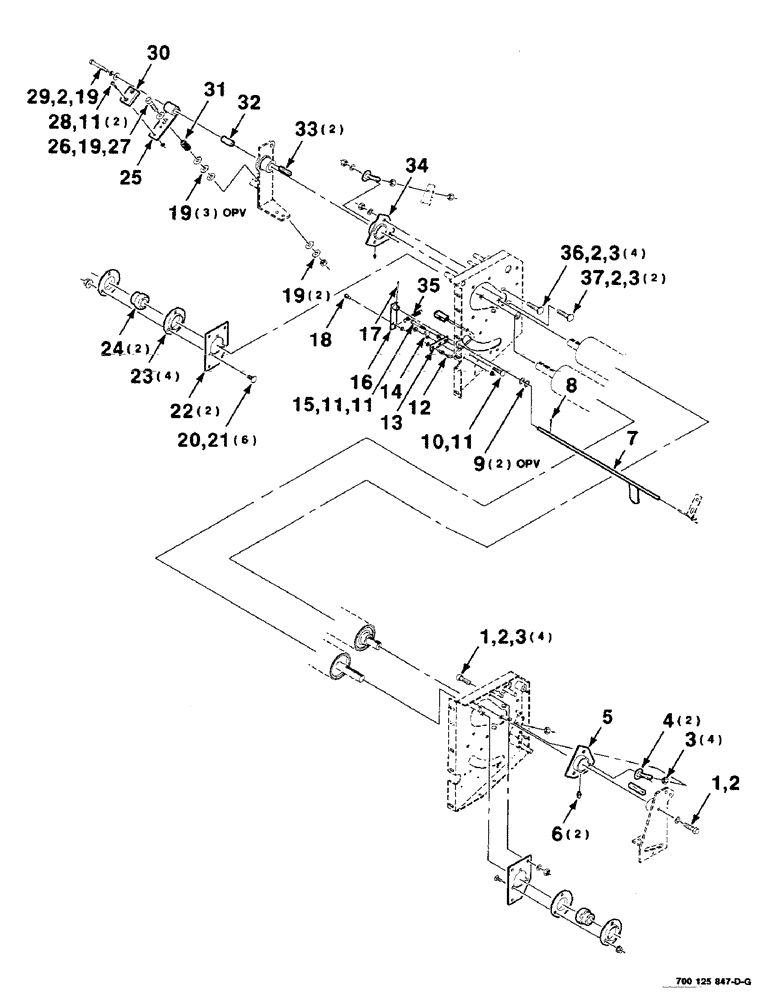

Схема запчастей Case IH 8465T - (9-72) - MESH WRAP KIT, ROLLER SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0073011 AND LATER Decals & Attachments
11
22
23
35
30
11
21
25
2
17
9
15
5
19
2
12
36
19
3
18
29
11
3
7
27
8
34
11
13
33
4
19
1
14
24
16
19
1
20
3
26
10
28
6
31
37
2
3
32
2
2

Артикул

Название

Примечание

Количество

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

2

492-11038

LOCK WASHER,3/8"

12шт.

3

425-106

NUT,3/8"-16, Cl 5

14шт.

4

296608

BOLT,3/8" - 16 x 2"

- eye

2шт.

5

700125909

SUPPORT

WA - left

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

7

700124565

SHAFT

WA

1шт.

8

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

10

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

1шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

12

700119161

SWITCH

ASSEMBLY

1шт.

13

700125910

MOUNTING PARTS

MOUNT - switch

1шт.

14

751321

CLAMP

- switch

1шт.

15

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

16

700124563

MOUNTING PARTS

MOUNTING WA

1шт.

17

20948R1

PIN,1/8" x 5/8", Coiled

1шт.

18

700710211

ACTUATOR

1шт.

19

495-21044

WASHER,3/8"

7шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

21

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

6шт.

22

700125720

PLATE

2шт.

23

50567

RATCHET

4шт.

24

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

2шт.

25

700125828

SUPPORT

WA - brake

1шт.

26

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

27

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

28

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 2 Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

29

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

30

700710930

PAD

- brake

1шт.

31

58107

SPRING

- compression

1шт.

32

700109003

BUSHING

1шт.

33

T13450

KEY

1/4 X 1-1/4 KEY

2шт.

34

700125721

SUPPORT

WA - right

1шт.

35

7758915

SPRING

- extension

1шт.

36

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

37

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

2шт.

Выбрано товаров: 37
