Запчасти Case IH 8465T (9-70) - MESH WRAP KIT, ROLLER SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0073001 THROUGH CFH0073010 Decals & Attachments

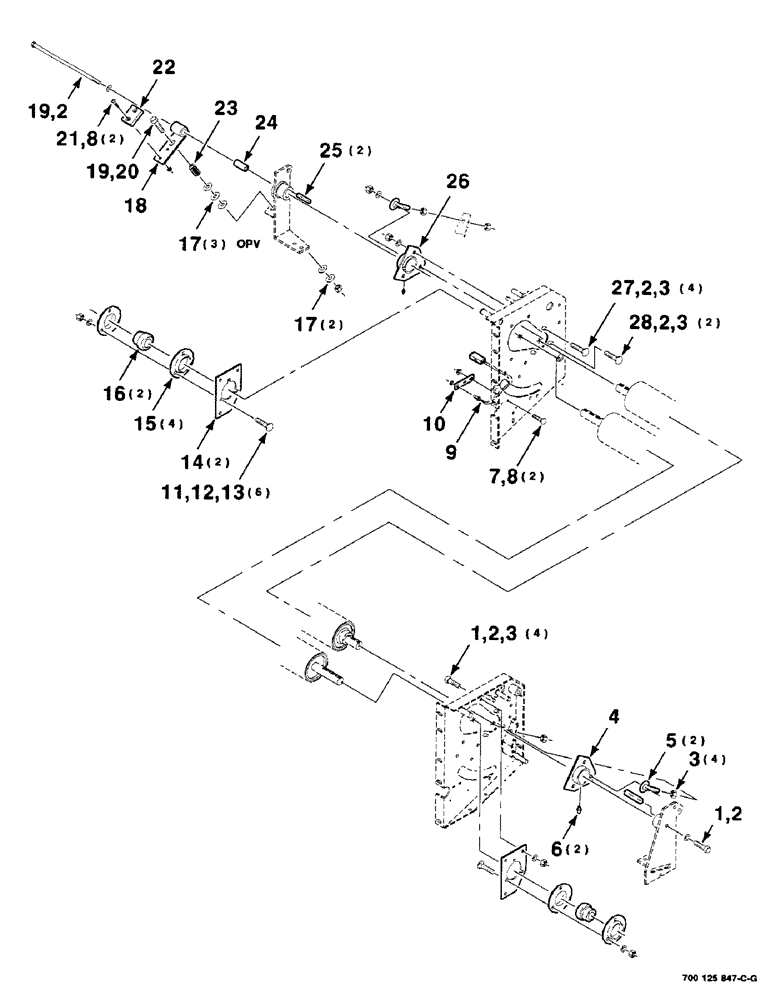

Схема запчастей Case IH 8465T - (9-70) - MESH WRAP KIT, ROLLER SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0073001 THROUGH CFH0073010 Decals & Attachments
2
1
3
7
19
4
16
5
12
14
24
9
3
1
3
17
28
17
19
3
26
27
18
20
15
2
11
21
8
22
8
6
2
13
2
10
23
25
2

Артикул

Название

Примечание

Количество

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

2

492-11038

LOCK WASHER,3/8"

12шт.

3

425-106

NUT,3/8"-16, Cl 5

14шт.

4

700125909

SUPPORT

WA - left

1шт.

5

296608

BOLT,3/8" - 16 x 2"

- eye

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

7

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

700119161

SWITCH

ASSEMBLY

1шт.

10

700125910

MOUNTING PARTS

MOUNT - switch

1шт.

11

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

425-105

NUT,5/16"-18, G5

6шт.

14

700125720

PLATE

2шт.

15

51200380

FLANGE

4шт.

16

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

2шт.

17

495-21044

WASHER,3/8"

5шт.

18

700125828

SUPPORT

WA - brake

1шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

2шт.

20

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

21

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 2 Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

22

700710930

PAD

- brake

1шт.

23

58107

SPRING

- compression

1шт.

24

700109003

BUSHING

1шт.

25

T13450

KEY

1/4 X 1-1/4 KEY

2шт.

26

700125721

SUPPORT

WA - right

1шт.

27

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

28

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

2шт.

Выбрано товаров: 28
