Запчасти Case IH 8465T (9-64) - MESH WRAP KIT, ROLLER ASSEMBLY, SERIAL NUMBER CFH0073001 THROUGH CFH0073010 Decals & Attachments

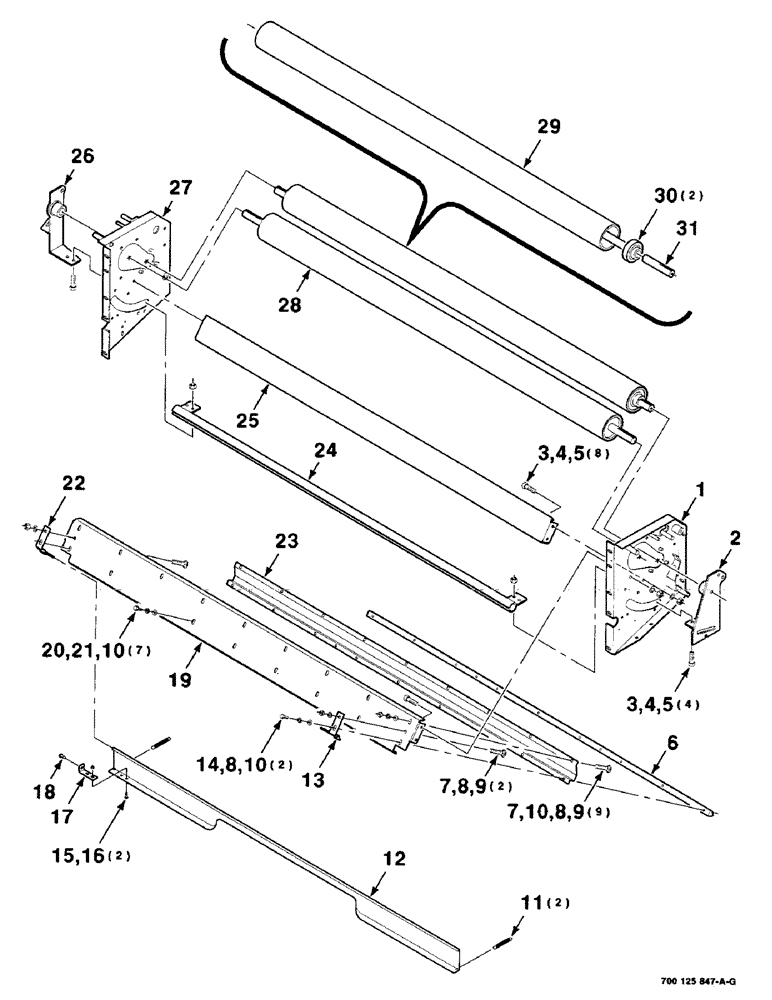

Схема запчастей Case IH 8465T - (9-64) - MESH WRAP KIT, ROLLER ASSEMBLY, SERIAL NUMBER CFH0073001 THROUGH CFH0073010 Decals & Attachments
7
4
18
31
27
30
23
25
5
22
15
8
19
9
12
20
5
3
10
2
29
10
17
11
6
26
8
24
7
8
4
9
1
21
10
14
13
16
3
28

Артикул

Название

Примечание

Количество

1

700125703

PANEL

WA - left

1шт.

2

700125821

SUPPORT

WA - left

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

4

492-11038

LOCK WASHER,3/8"

12шт.

5

425-106

NUT,3/8"-16, Cl 5

12шт.

6

700125812

BUMPER

1шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

11шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

9

425-105

NUT,5/16"-18, G5

11шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

18шт.

11

7758915

SPRING

2шт.

12

700125816

FLAP

1шт.

13

700125817

SUPPORT

WA

1шт.

14

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

5/16-18 X 1 HWHTCTS

2шт.

15

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

700125911

MOUNTING PARTS

MOUNT - magnet

1шт.

18

700710211

ACTUATOR

1шт.

19

700125814

SUPPORT

1шт.

20

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

7шт.

21

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

7шт.

22

700125819

SUPPORT

WA - right

1шт.

23

700126767

REINFORCEMENT

1шт.

24

700125809

KNIFE

WA

1шт.

25

700125813

SUPPORT

1шт.

26

700125825

SUPPORT

WA - right

1шт.

27

700125713

PANEL

WA - right

1шт.

28

700125694

ROLLER

ASSEMBLY (S.N. CFH0073001 thru CFH0073197)

1шт.

700127934

ROLLER

ASM. (overrunning clutch) (CFH0073198 and later)

1шт.

29

700125700

ROLLER

1шт.

30

51680

BEARING, BALL

BEARING

2шт.

31

700125820

SHAFT

1шт.

Выбрано товаров: 32
