Запчасти Case IH 8465T (9-62) - MESH WRAP KIT, BOX ASSEMBLY, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments

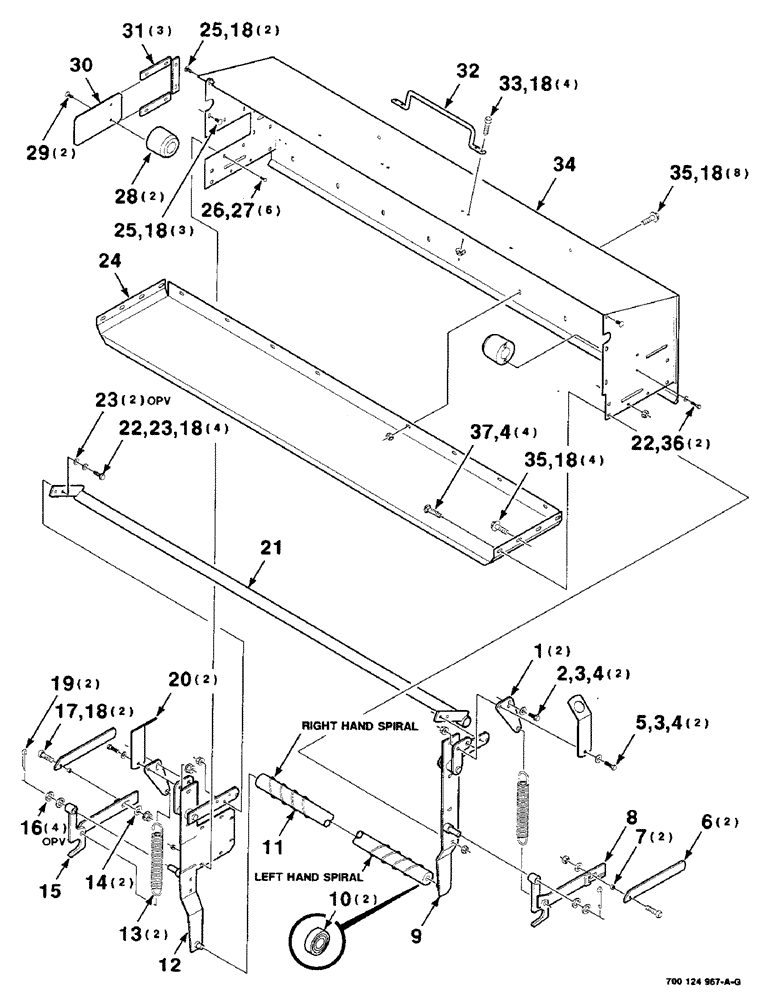

Схема запчастей Case IH 8465T - (9-62) - MESH WRAP KIT, BOX ASSEMBLY, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments
21
4
9
3
14
1
17
12
15
7
4
28
6
3
18
8
18
34
19
22
24
18
31
13
18
35
10
11
4
27
23
32
33
29
2
16
18
25
23
18
37
22
30
5
26
25
35
18
20
36

Артикул

Название

Примечание

Количество

1

700136022

ARM

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

3

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

6

700125777

HANDLE

2шт.

7

276022

SPACER

2шт.

8

700125770

LATCH

WA - left

1шт.

9

700128333

SUPPORT

WA - left

1шт.

10

700710877

BEARING, ROLLER, CYL,15 mm ID x 35 mm OD x 11 mm

BEARING - cylindrical

2шт.

11

700125764

ROLLER

ASSEMBLY (includes item 10)

1шт.

12

700128334

SUPPORT

WA - right

1шт.

13

858167

SPRING

- extension

2шт.

14

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

15

700125776

LATCH

WA - right

1шт.

16

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

17

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

2шт.

18

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

27шт.

19

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

20

700125846

HANGER

2шт.

21

700125737

PIPE

WA

1шт.

22

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

6шт.

23

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

24

700128307

PANEL

- floor

1шт.

25

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

26

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

6шт.

27

1703354

NUT

1/4-20 HFTLN GR/G

6шт.

28

700127924

MOUNTING PARTS

MOUNTING - spool

2шт.

29

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

5/16-18 X 3/4 HSFCHCS SPL

2шт.

30

700127926

PLATE

1шт.

31

700127925

PLATE

3шт.

32

700710878

HANDLE

1шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

34

700128340

LID

WA

1шт.

35

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

36

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

37

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

Выбрано товаров: 37
