Запчасти Case IH 8465T (9-60) - MESH WRAP KIT, BOX ASSEMBLY, SERIAL NUMBER CFH0073138 THROUGH CFH0073271 Decals & Attachments

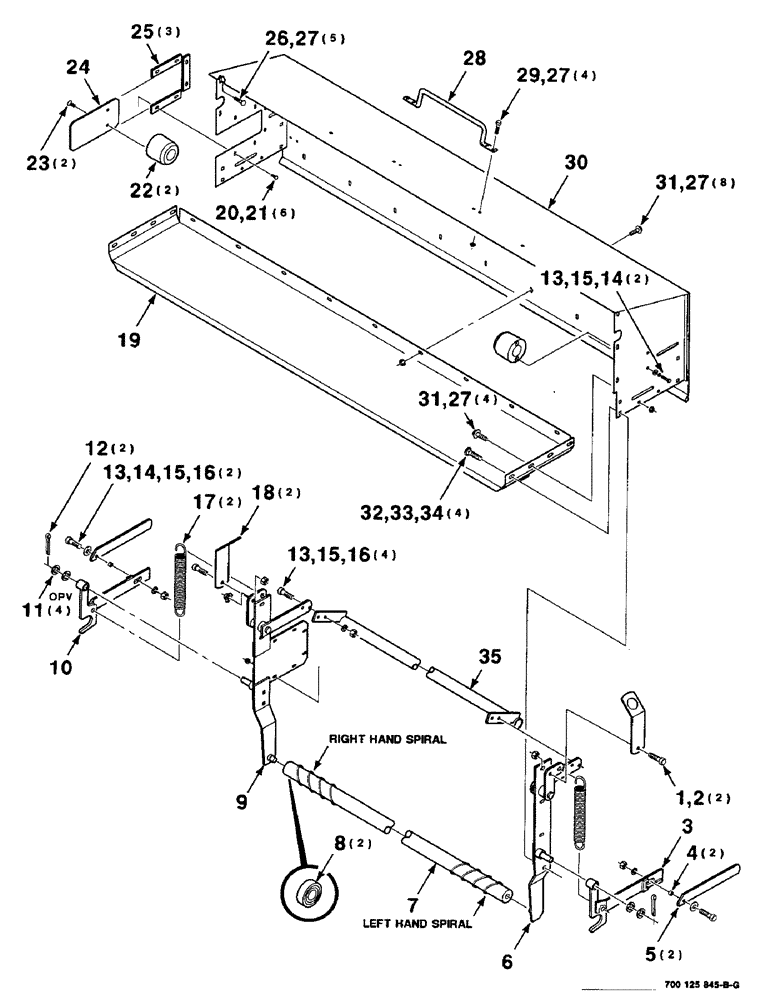

Схема запчастей Case IH 8465T - (9-60) - MESH WRAP KIT, BOX ASSEMBLY, SERIAL NUMBER CFH0073138 THROUGH CFH0073271 Decals & Attachments
26
15
35
32
13
34
21
15
7
1
18
16
6
13
12
27
27
9
29
3
27
17
33
4
16
31
14
30
19
20
24
13
11
10
5
31
22
15
27
25
8
14
2
23
28

Артикул

Название

Примечание

Количество

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

2

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

3

700125770

LATCH

WA - left

1шт.

4

276022

SPACER

2шт.

5

700125777

HANDLE

2шт.

6

700128333

SUPPORT

WA - left

1шт.

7

700125764

ROLLER

ASSEMBLY (includes item 8)

1шт.

8

700710877

BEARING, ROLLER, CYL,15 mm ID x 35 mm OD x 11 mm

BEARING - cylindrical

2шт.

9

700128334

SUPPORT

WA - right

1шт.

10

700125776

LATCH

WA - right

1шт.

11

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

12

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

16

425-105

NUT,5/16"-18, G5

6шт.

17

700710130

SPRING

- extension

2шт.

18

700125846

HANGER

2шт.

19

700128307

PANEL

- floor

1шт.

20

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

6шт.

21

1703354

NUT

1/4-20 HFTLN GR/G

6шт.

22

700127924

MOUNTING PARTS

MOUNTING - spool

2шт.

23

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

5/16-18 X 3/4 HSFCHCS SPL

2шт.

24

700127926

PLATE

1шт.

25

700127925

PLATE

3шт.

26

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

21шт.

28

700710878

HANDLE

1шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

30

700128340

LID

WA

1шт.

31

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

32

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

4шт.

35

700125737

PIPE

WA

1шт.

Выбрано товаров: 35
