Запчасти Case IH 8465T (9-58) - MESH WRAP KIT, BOX ASSEMBLY, SERIAL NUMBER CFH0073001 THROUGH CFH0073137 Decals & Attachments

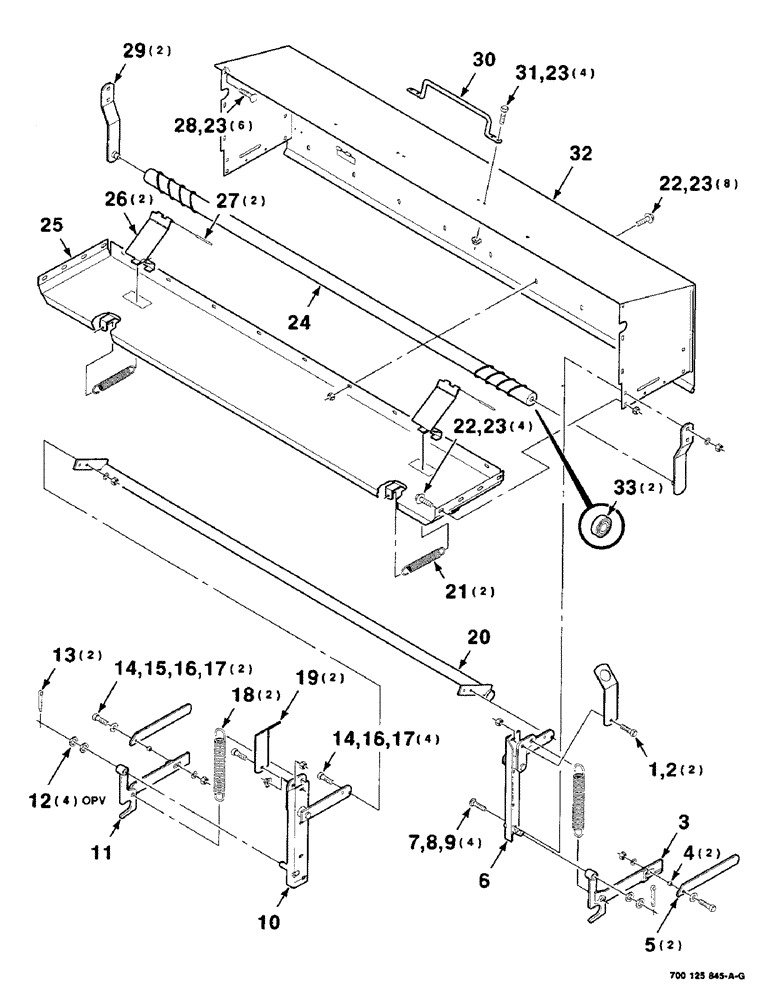

Схема запчастей Case IH 8465T - (9-58) - MESH WRAP KIT, BOX ASSEMBLY, SERIAL NUMBER CFH0073001 THROUGH CFH0073137 Decals & Attachments
3
5
22
20
23
27
23
31
11
2
1
7
16
30
24
9
21
25
4
15
22
6
14
23
28
33
14
12
19
26
8
17
32
23
17
16
29
13
10
18

Артикул

Название

Примечание

Количество

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

2

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

3

700125770

LATCH

WA - left

1шт.

4

276022

SPACER

2шт.

5

700125777

HANDLE

2шт.

6

700125741

SUPPORT

WA - left

1шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

700125748

SUPPORT

WA - right

1шт.

11

700125776

LATCH

WA - right

1шт.

12

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

13

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

425-105

NUT,5/16"-18, G5

6шт.

18

700710130

SPRING

- extension

2шт.

19

700125846

HANGER

2шт.

20

700125737

PIPE

WA

1шт.

21

700709637

SPRING

- extension

2шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

22шт.

24

700125764

ROLLER

ASM (includes item 33)

1шт.

25

700125733

PANEL

WA

1шт.

26

700125730

DEFLECTOR

WA

2шт.

27

700128299

PIN

- hinge

2шт.

28

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

29

700125761

SUPPORT

WA

2шт.

30

700710878

HANDLE

1шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

32

700125725

LID

WA

1шт.

33

700710877

BEARING, ROLLER, CYL,15 mm ID x 35 mm OD x 11 mm

BEARING - cylindrical

2шт.

Выбрано товаров: 33
