(9-40) - MESH WRAP ADAPTER KIT, SERIAL NUMBER CFH0073272 AND LATER

Запчасти Case IH 8465T (9-40) - MESH WRAP ADAPTER KIT, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments

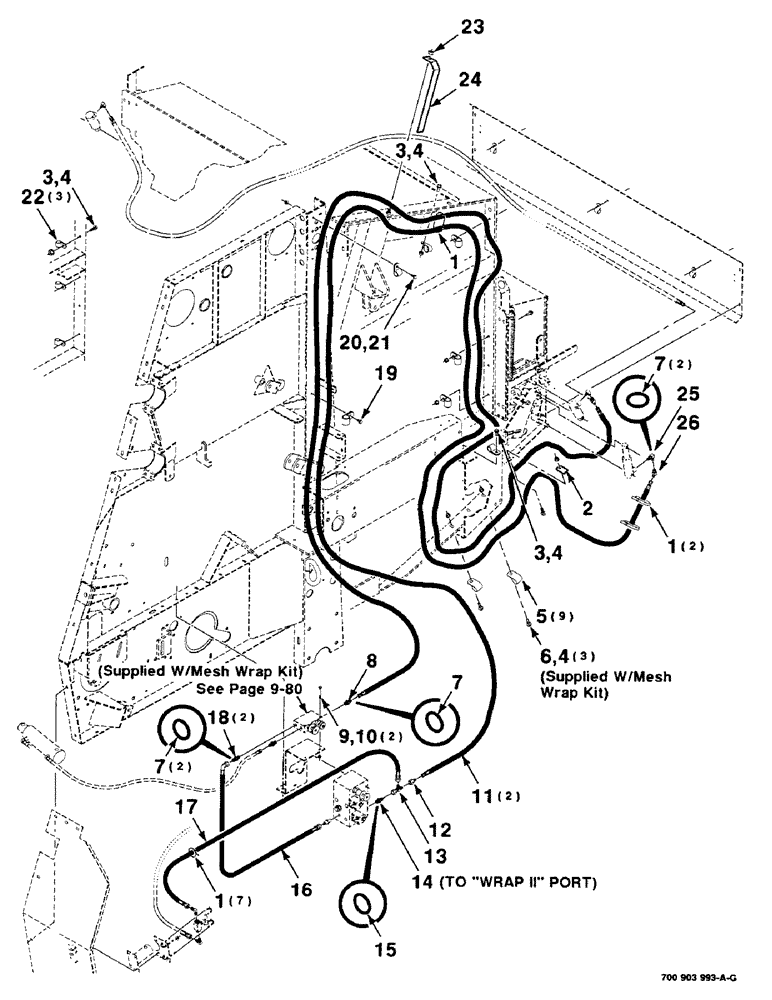

Схема запчастей Case IH 8465T - (9-40) - MESH WRAP ADAPTER KIT, SERIAL NUMBER CFH0073272 AND LATER Decals & Attachments
1
5
14
17
10
1
25
1
19
16
11
7
24
3
3
7
4
20
4
8
2
15
9
12
13
3
6
22
4
18
21
26
7
4
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK50905

MESH WRAP ADAPTER KIT COMPLETE

1шт.

1

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

10шт.

2

489898

BRACKET

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

5

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

9шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

3шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

5шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - short straight thread (Incl. item 7)

1шт.

9

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

10

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

11

700711008

HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1

6.35 mm ID x 6600.00 mm, SAE 100R1

2шт.

12

700715895

REDUCER

ADAPTER - reducer, 9/16-7/16 JIC

1шт.

13

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short straight thread (includes item 15)

1шт.

15

738468

O-RING

1шт.

16

7892029

HOSE

- hydraulic

1шт.

17

812382C1

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

18

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - short straight thread (includes item 7)

2шт.

19

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

21

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

22

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

3шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

24

700130845

GUIDE

1шт.

25

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 DEGREES (includes item 7)

1шт.

26

700711969

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

45 DEGREES

1шт.
