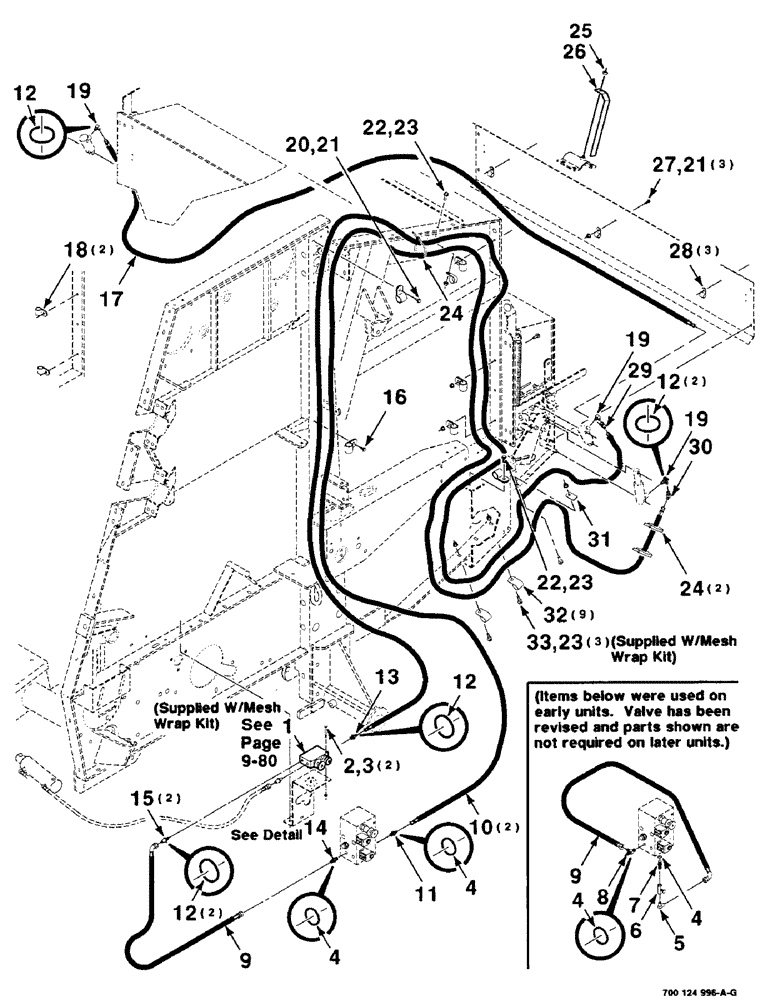

Запчасти Case IH 8465T (9-38) - MESH WRAP ADAPTER KIT, SERIAL NUMBER CFH0073001 THROUGH CFH0073271 Decals & Attachments

HK50629

MESH WRAP ADAPTER KIT COMPLETE

1шт.

1

700711967

VALVE

ASSEMBLY - control (not supplied with adapter kit)

1шт.

2

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

4

738468

O-RING

4шт.

5

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 DEGREES

1шт.

6

700711345

VALVE

1шт.

7

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR

1шт.

8

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Hydraulic (Includes item 4) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

9

7892029

HOSE

- hydraulic

2шт.

10

700711008

HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1

6.35 mm ID x 6600.00 mm, SAE 100R1

2шт.

11

700707841

HYD CONNECTOR

CONNECTOR - hydraulic (includes item 4)

1шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

6шт.

13

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR (includes item 12)

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight (includes item 14)

1шт.

15

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR (includes item 12)

2шт.

16

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.

17

700711009

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm, SAE 100R1

6.35 mm ID x 1850.00 mm, SAE 100R1

1шт.

18

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

2шт.

19

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 DEGREES (includes item 12)

3шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

22

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

23

231-5146

FLANGE NUT,3/8"-16

5шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

700130845

GUIDE

1шт.

27

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

3шт.

29

700701355

3 WAY CONNECTION

TEE - hydraulic

1шт.

30

700711969

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

45 DEGREES

1шт.

31

489898

BRACKET

1шт.

32

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

9шт.

33

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8 (not supplied with adapter kit)

3шт.
