Запчасти Case IH 8465T (9-34) - GATHERING WHEEL KIT, HK50428 GATHERING WHEEL KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

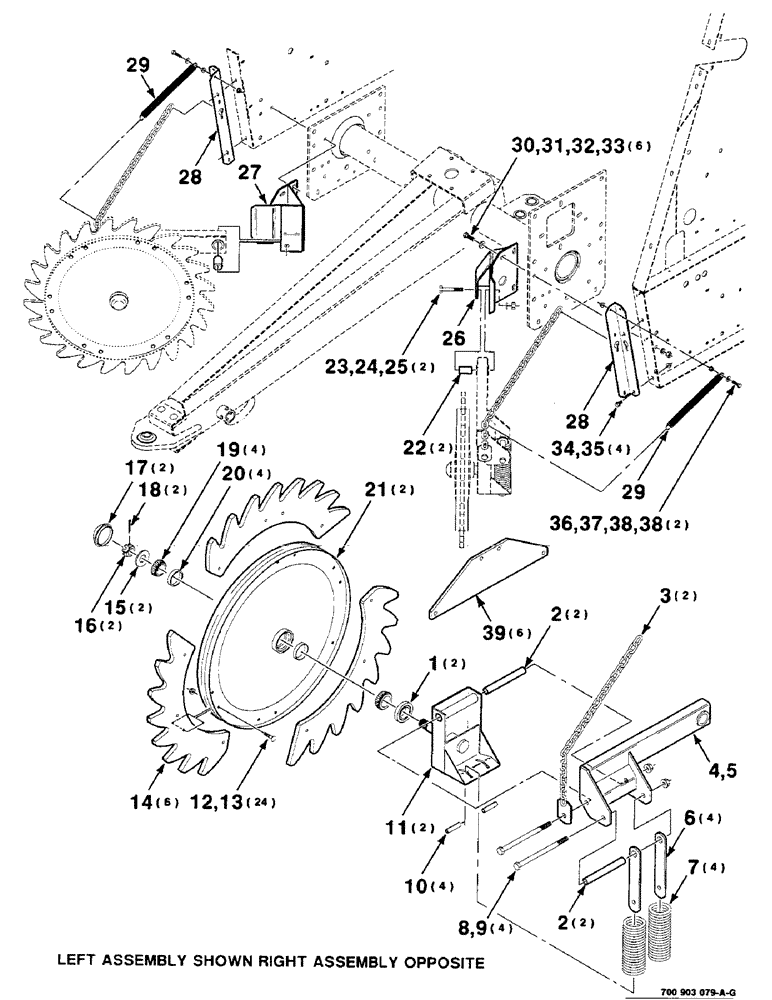

Схема запчастей Case IH 8465T - (9-34) - GATHERING WHEEL KIT, HK50428 GATHERING WHEEL KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments
27
25
18
8
26
1
34
12
3
29
16
28
30
4
39
33
20
24
38
2
9
35
2
5
10
22
17
38
32
26
37
15
23
6
13
14
11
31
28
21
19
7
29

Артикул

Название

Примечание

Количество

HK50428

WHEEL

GATHERING WHEEL KIT COMPLETE

1шт.

1

744912

SEAL

- grease

2шт.

2

700117009

SPACER

BUSHING

4шт.

3

700117011

SUPPORT

- chain

2шт.

4

700117003

STRUT

WA - wheel, left (shown)

1шт.

5

700117004

SLIDE

STRUT WA - wheel, right (not shown)

1шт.

6

700117013

STRAP

- link

4шт.

7

700707651

SPRING

- compression

4шт.

8

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

1/2-13 X 7-1/2 B

4шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

10

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

4шт.

11

700116997

SPINDLE

BRACKET - spindle

2шт.

12

111-122

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 1/4", G5

24шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

24шт.

14

8027476

SEGMENT

NOTCHED SEGMENT - rubber (.750" thick) (superseded by 700711239 and 700128319)

6шт.

700711239

SEGMENT

NOTCHED RUBBER SEGMENT (.563" thick)

6шт.

15

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER

2шт.

16

425-1314

SLOTTED NUT,7/8"-14, G5

7/8-14 SLOTTED HEX NUT

2шт.

17

518842R1

CAP

- hub

2шт.

18

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

19

E13994

BEARING,25.4mm ID

CONE - bearing

4шт.

20

50104

BEARING CUP,50.01mm OD

CUP - bearing

4шт.

21

6868954

RIM

WHEEL ASM. (includes item 20) groove .563" (superseded by 700128318 and 700711239)

2шт.

700128318

WHEEL ASSY.

WHEEL ASSEMBLY (includes item 20) groove witdth .563"

2шт.

22

284463

SPACER

BUSHING

2шт.

23

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25

425-1010

NUT,5/8"-11, G5

2шт.

26

700117015

SUPPORT

WA - pivot, left

1шт.

27

700117016

SUPPORT

WA - pivot, right

1шт.

28

700119167

ANGLE

- bracket

2шт.

29

700708977

SPRING

2шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

31

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

6шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

34

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

37

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

39

700128319

SHIM

(only used with .75" Gap Wheel)

6шт.

Выбрано товаров: 42
