Запчасти Case IH 8465T (9-32) - FIRE EXTINGUISHER KIT, HK50556 FIRE EXTINGUISHER KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

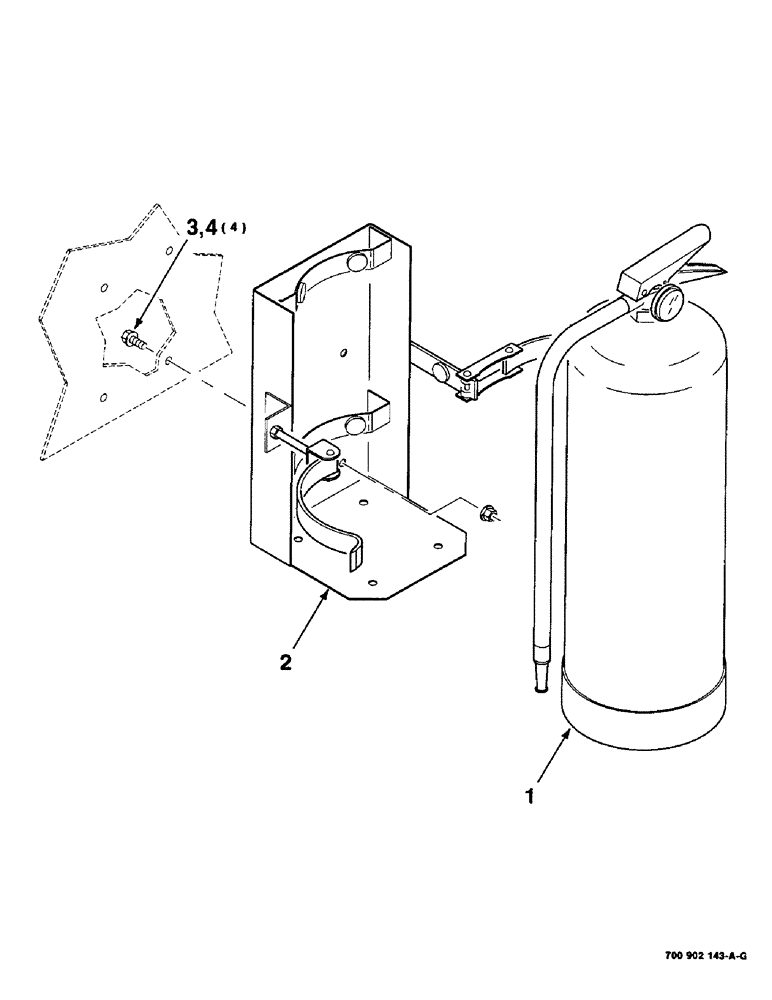

Схема запчастей Case IH 8465T - (9-32) - FIRE EXTINGUISHER KIT, HK50556 FIRE EXTINGUISHER KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments
1
4
3
2

Артикул

Название

Примечание

Количество

HK50556

FIRE EXTINGUISHER KIT COMPLETE

1шт.

1

700709200

FIRE EXTINGUISHER

EXTINGUISHER - fire

1шт.

2

700709201

BRACKET

- mounting

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

Выбрано товаров: 5
