Запчасти Case IH 8465T (9-26) - PICKUP LIFT KIT, HYDRAULIC, HK50446 PICKUP LIFT KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

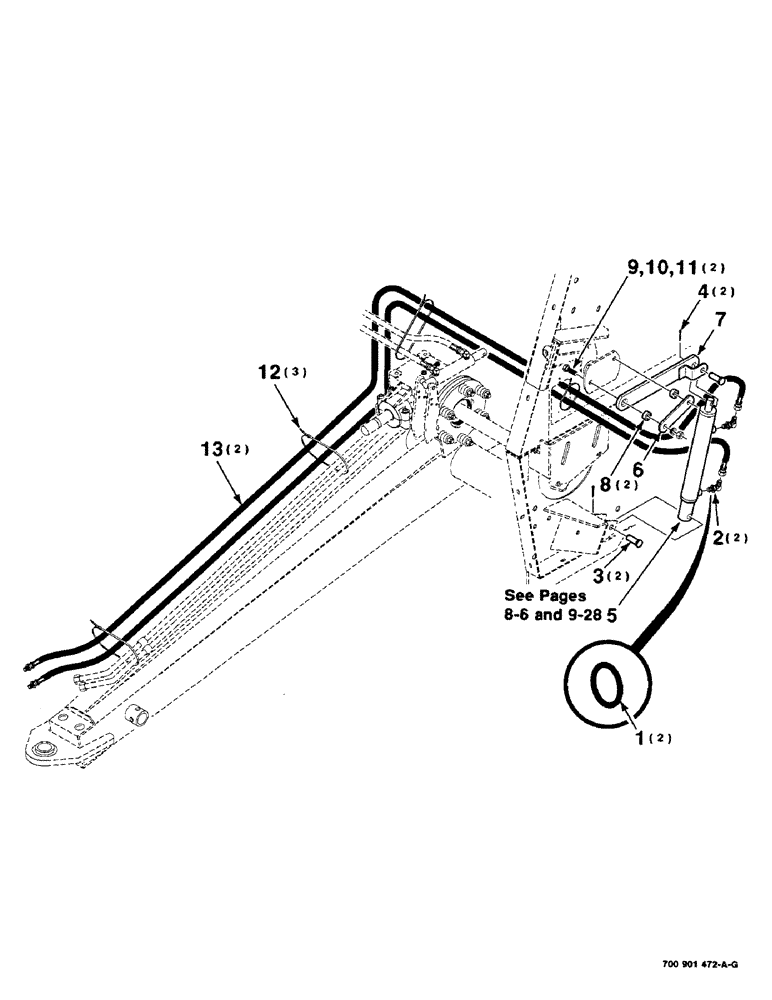

Схема запчастей Case IH 8465T - (9-26) - PICKUP LIFT KIT, HYDRAULIC, HK50446 PICKUP LIFT KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments
10
13
9
4
2
11
7
8
1
6
12
5
3

Артикул

Название

Примечание

Количество

HK50446

ATTACHMENT

PICKUP LIFT KIT COMPLETE

1шт.

1

738468

O-RING

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(includes item 1) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

3

63495

CLIP

5/8 X 2-1/2 CLEVIS PIN

2шт.

4

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

5

700709416

CYLINDER

ASSEMBLY - hydraulic

1шт.

700712122

CYLINDER

ASSEMBLY - hydraulic

1шт.

6

700116172

PLATE

1шт.

7

700116173

LEVER

1шт.

8

6287155

SPACER

2шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

13

700704624

HOSE

- hydraulic

2шт.

14

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 X 1 HWHTCTS

2шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

Выбрано товаров: 17
