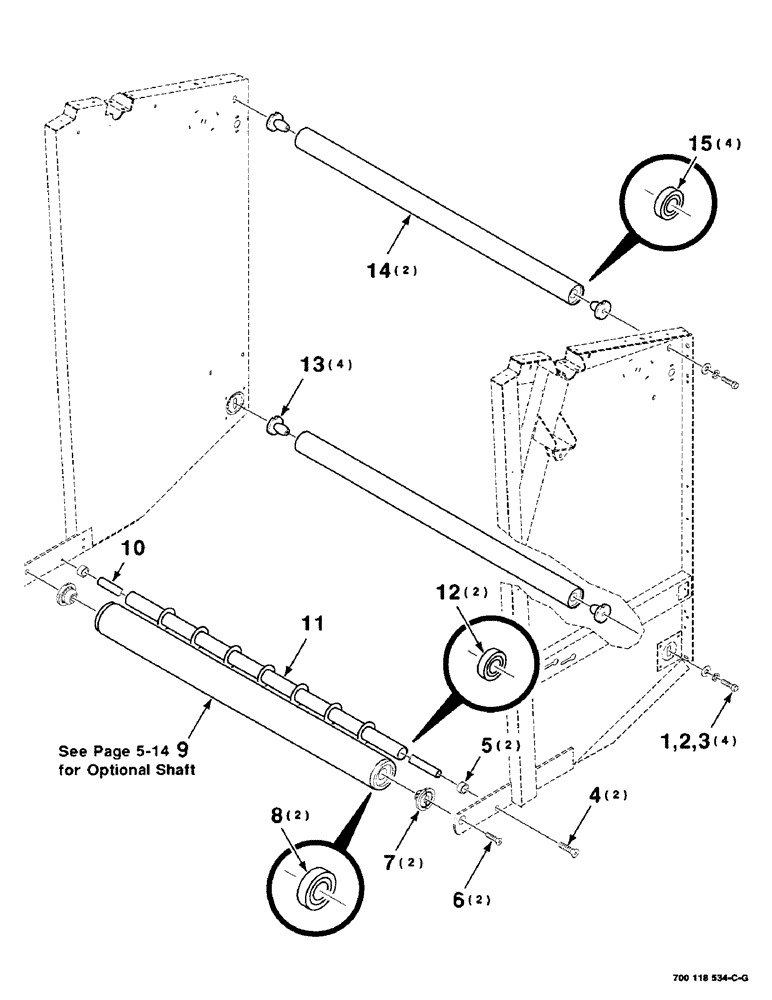

Запчасти Case IH 8465T (5-08) - TAILGATE ROLLER ASSEMBLY, SERIAL NUMBER CFH0074001 THROUGH CFH0074855 (16) - BALE EJECTOR

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

4

1703453

BOLT,Flat Hd, Csk, 1/2" - 13 x 1 1/4"

1/2-13 X 1-1/4 HSFCHCS

2шт.

5

6467674

SPACER

2шт.

6

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

2шт.

7

700125071

HUB

2шт.

8

700710914

BEARING, ROLLER, CYL,55.56mm ID x 100mm OD x 24mm W

BEARING - cylindrical

2шт.

9

700125073

ROLLER

ASSEMBLY (includes item 8)

1шт.

700130852

ROLLER

ASSEMBLY

1шт.

10

700129347

SHAFT

- roller

1шт.

11

700125801

ROLLER

ASSEMBLY (includes item 12)

1шт.

12

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

13

700100927

HUB

4шт.

14

700124612

ROLLER

ASSEMBLY (includes item 15)

2шт.

15

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.
