(6-30) - FORMING BELTS AND LACING, CLIPPER BELT, SERIAL NUMBER CFH0074001 THROUGH CFH0074591,

Запчасти Case IH 8465T (6-30) - FORMING BELTS AND LACING, CLIPPER BELT, SERIAL NUMBER CFH0074001 THROUGH CFH0074591, (14) - BALE CHAMBER

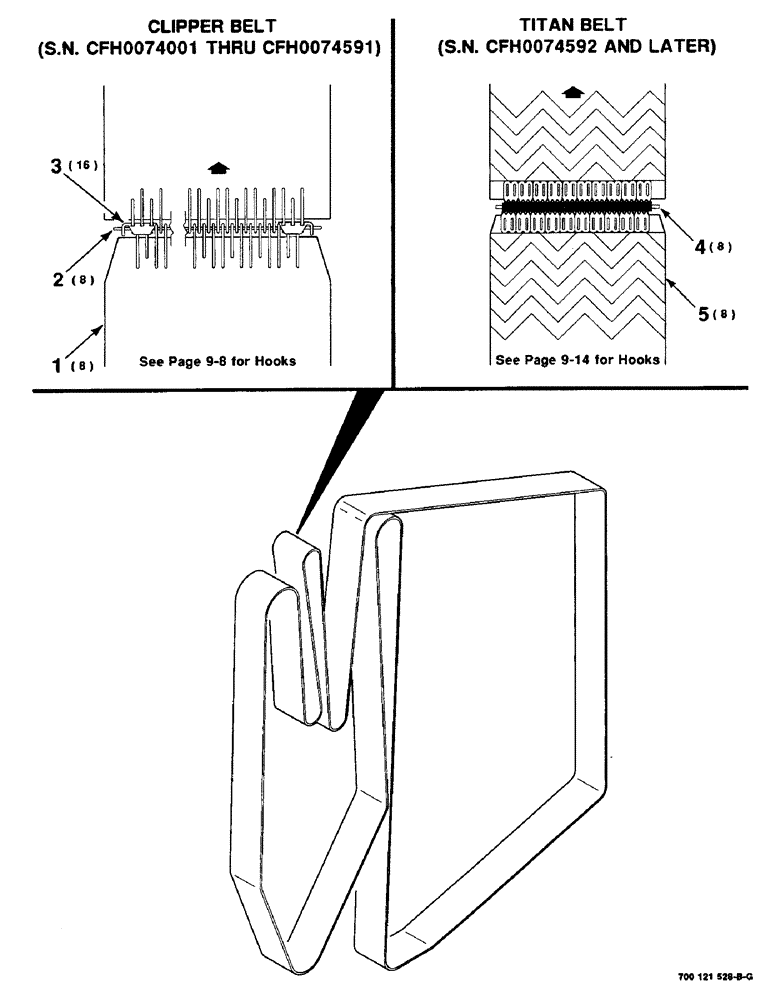

Схема запчастей Case IH 8465T - (6-30) - FORMING BELTS AND LACING, CLIPPER BELT, SERIAL NUMBER CFH0074001 THROUGH CFH0074591, (14) - BALE CHAMBER
5
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709999

BELT,177.00 mm W x 14287.5 mm L

177.00 mm W x 14287.5 mm

8шт.

2

700710206

PIN,1.73mm OD x 180mm L

- lacing

8шт.

3

700707322

LATCH ASSY.

FASTENER

16шт.

4

700713342

PIN

- lacing

8шт.

5

700713617

BELT,177.00 mm W x 14287.50 mm L

8шт.
