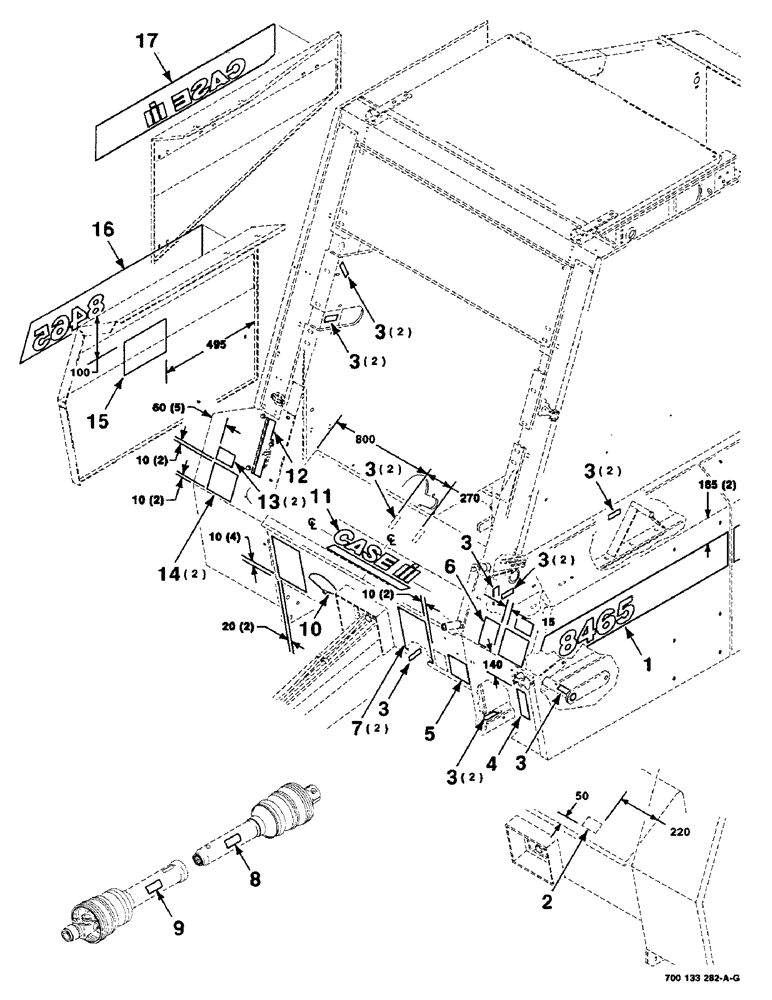

Запчасти Case IH 8465T (9-06) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0074876 AND LATER Decals & Attachments

Схема запчастей Case IH 8465T - (9-06) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0074876 AND LATER Decals & Attachments
9
14
3
12
6
8
4
15
13
16
3
3
3
17
3
5
1
3
10
3
3
3
2
7
11

Артикул

Название

Примечание

Количество

1

700714343

DECAL

- combo, left, front

1шт.

2

700710321

DECAL

- spring

1шт.

3

7889306

DECAL

- lube

15шт.

4

878694

REFLECTOR

- amber

1шт.

5

878157

DECAL

- notice

1шт.

6

700709165

DECAL

- information

1шт.

7

8888398

DECAL

- danger

2шт.

8

1326528C1

DECAL

- danger, powerline

1шт.

9

80672C1

DECAL

- danger, powerline

1шт.

10

700707206

DECAL

- dial, indicator

1шт.

11

192848A2

DECAL

- Case IH

1шт.

12

700706193

DECAL

- dial

1шт.

13

7778202

DECAL

- oil chains

2шт.

14

700714229

DECAL

- warning

2шт.

15

700713667

DECAL

- information

1шт.

16

700714344

DECAL

- combo, right, front

1шт.

17

700714315

DECAL

- combo, right, rear

1шт.

Выбрано товаров: 17
