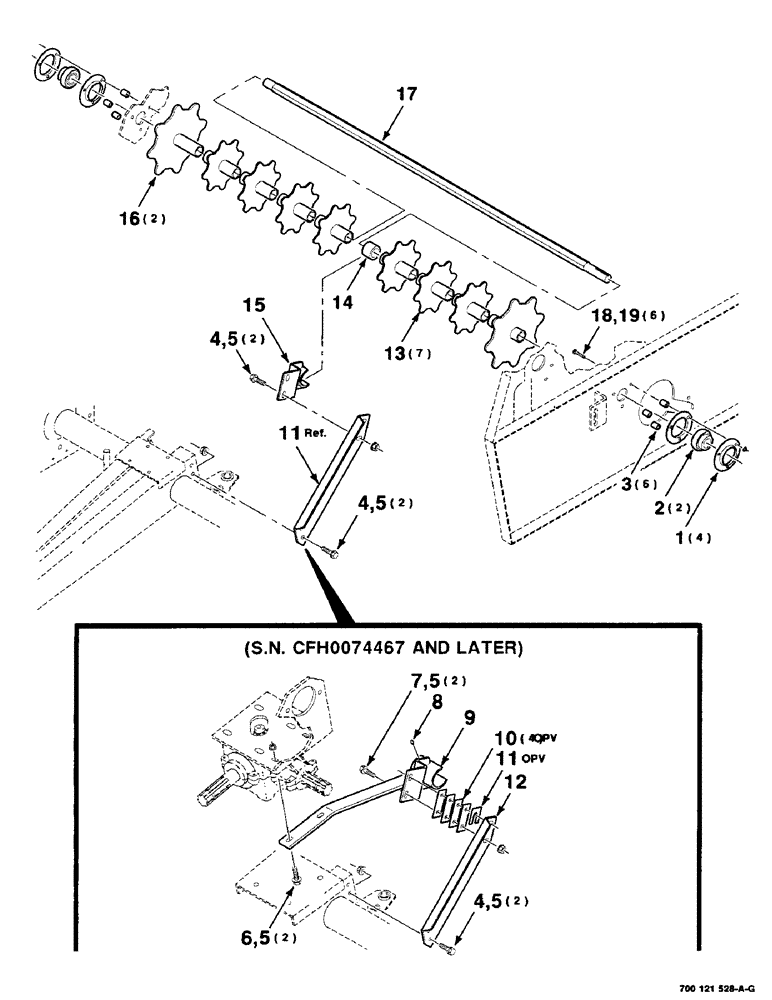

Запчасти Case IH 8465T (6-18) - POWERED RIENK ASSEMBLY (14) - BALE CHAMBER

1

617863R1

FLANGED BEARING

- 72 mm

4шт.

2

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

2шт.

3

6869382

SPACER

6шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

6

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

9

700129350

SUPPORT

WA

1шт.

700133245

SUPPORT ASSY.

SUPPORT WA

1шт.

10

700130748

SHIM

4шт.

11

700101218

ADJUSTING PLATE

SHIM

1шт.

12

700125920

SUPPORT

1шт.

13

700125160

DISC

RIENK WA - inner

7шт.

700133243

DISC

RIENK WA - inner

7шт.

14

700712007

NYLON BEARING,32.8 mm ID x 50.8 mm OD x 38 mm

BUSHING - nylon

1шт.

15

700125917

SUPPORT

WA

1шт.

16

700124599

DISC

RIENK WA - outer

2шт.

700133242

WHEEL

RIENK WA - outer

2шт.

17

700126362

SHAFT

- hex

1шт.

18

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

6шт.

19

231-5146

FLANGE NUT,3/8"-16

6шт.
