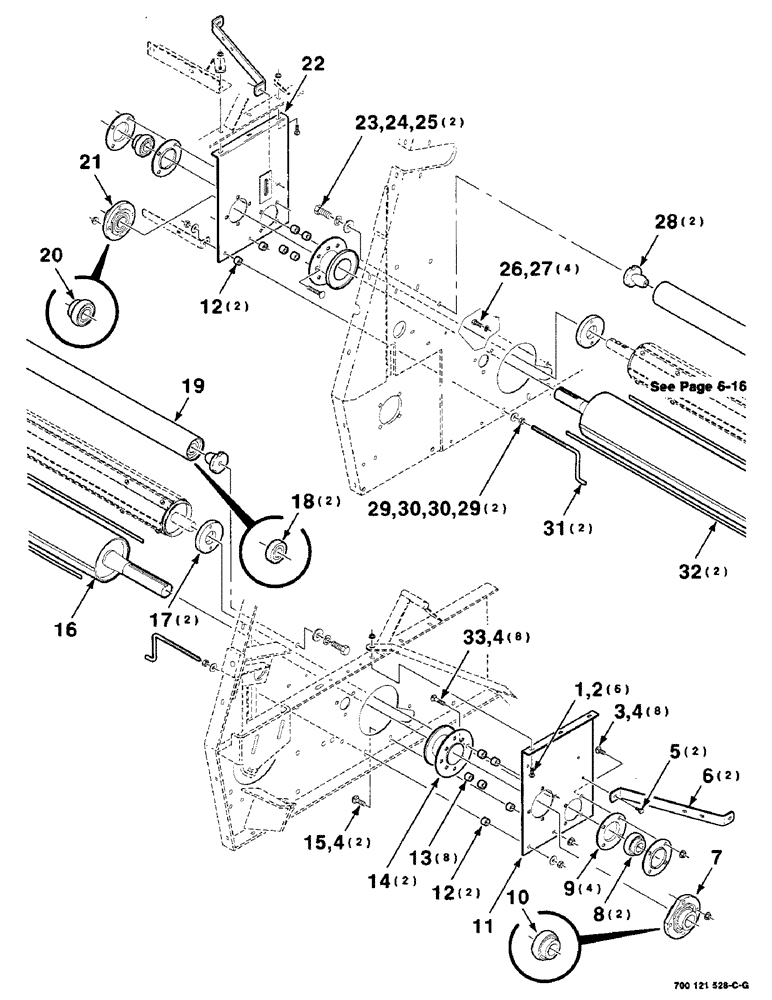

Запчасти Case IH 8465T (6-14) - ROLLERS ASSEMBLY, LOWER (14) - BALE CHAMBER

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

2

231-5146

FLANGE NUT,3/8"-16

6шт.

3

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

8шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

18шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

6

700131945

STRAP

2шт.

7

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

BEARING ASSEMBLY (includes item 10)

1шт.

8

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

2шт.

9

663562R1

FLANGE

80 mm

4шт.

10

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

1шт.

11

700131959

SUPPORT

WA - lower, left

1шт.

12

700100054

SPACER

4шт.

13

700126902

SPACER

8шт.

14

700124601

RING

WA - grass

2шт.

15

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

2шт.

16

700124605

ROLLER

ASSEMBLY (includes item 32)

1шт.

17

700107960

OIL SEAL

RING - grass

2шт.

700122771

SPACER

RING - grass

2шт.

18

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

2шт.

19

700116170

ROLLER

ASSEMBLY (includes item 18)

1шт.

700124612

ROLLER

ASSEMBLY (includes item 18)

1шт.

20

51318

BEARING

- spherical

1шт.

21

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (includes item 20)

1шт.

22

700122715

SUPPORT

- lower, right (S.N. CFH0074001 thru CFH0074875)

1шт.

700133269

SUPPORT

WA - lower, right (S.N. CFH0074876 and later)

1шт.

23

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

2шт.

24

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

25

495-21081

WASHER,3/4"

2шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

28

700100927

HUB

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

30

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

31

700133284

CRANK

ROD - guide

2шт.

32

700128327

STRAP

2шт.

33

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

8шт.
