Запчасти Case IH 8465T (6-10) - THREADER PULLEY AND GUIDE ASSEMBLIES, TWINE (14) - BALE CHAMBER

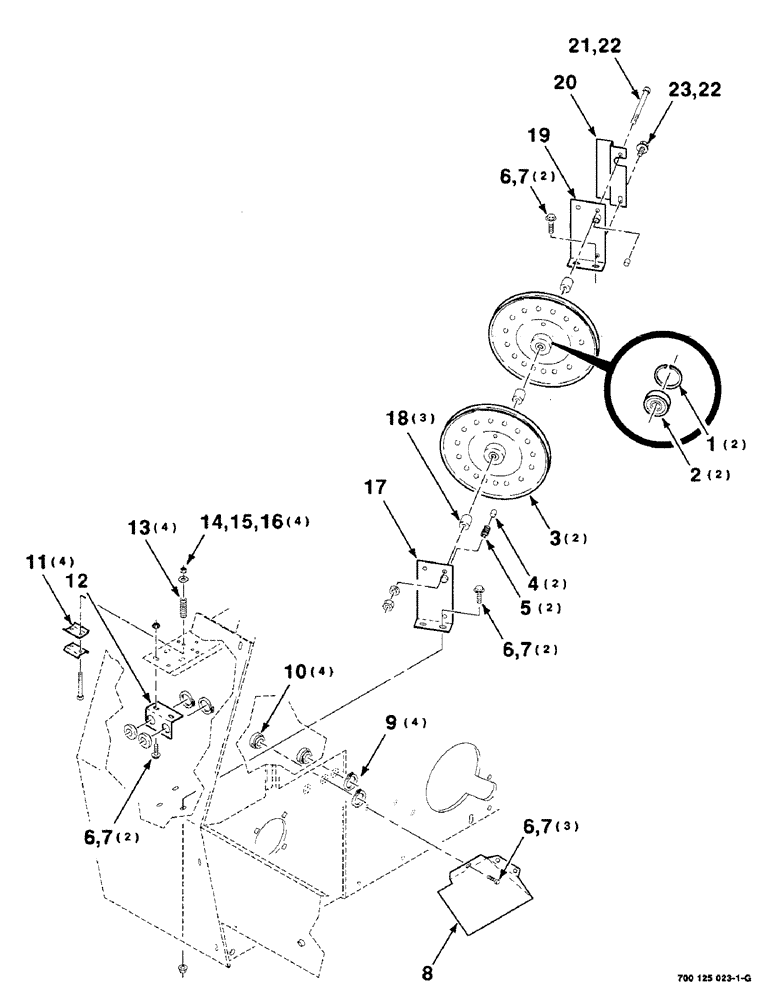

Схема запчастей Case IH 8465T - (6-10) - THREADER PULLEY AND GUIDE ASSEMBLIES, TWINE (14) - BALE CHAMBER
6
17
5
8
19
4
14
15
3
7
11
6
6
2
21
20
22
22
1
10
7
7
6
12
9
18
16
7
13
23

Артикул

Название

Примечание

Количество

1

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

2шт.

2

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

BEARING - cylindrical

2шт.

3

700116222

PULLEY ASSY.

PULLEY ASSEMBLY (includes items 1 & 2)

2шт.

4

700122575

BUTTON

- nylon

2шт.

5

858183

SPRING

- compression

2шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

9шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

9шт.

8

700126369

SHIELD

1шт.

9

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

4шт.

10

700107977

GUIDE

- twine

4шт.

11

6549869

SUPPORT

BRACKET - tension

4шт.

12

700119984

SUPPORT

1шт.

13

700707677

SPRING

- compression

4шт.

14

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1/4-20 X 2-3/4 C

4шт.

15

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

16

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

4шт.

17

700122990

SUPPORT

WA - front

1шт.

18

700116070

SPACER

3шт.

19

700122968

SUPPORT

WA - rear

1шт.

20

700119985

SHIELD

1шт.

21

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

3/8-16 X 5-1/2 C

1шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

Выбрано товаров: 23
