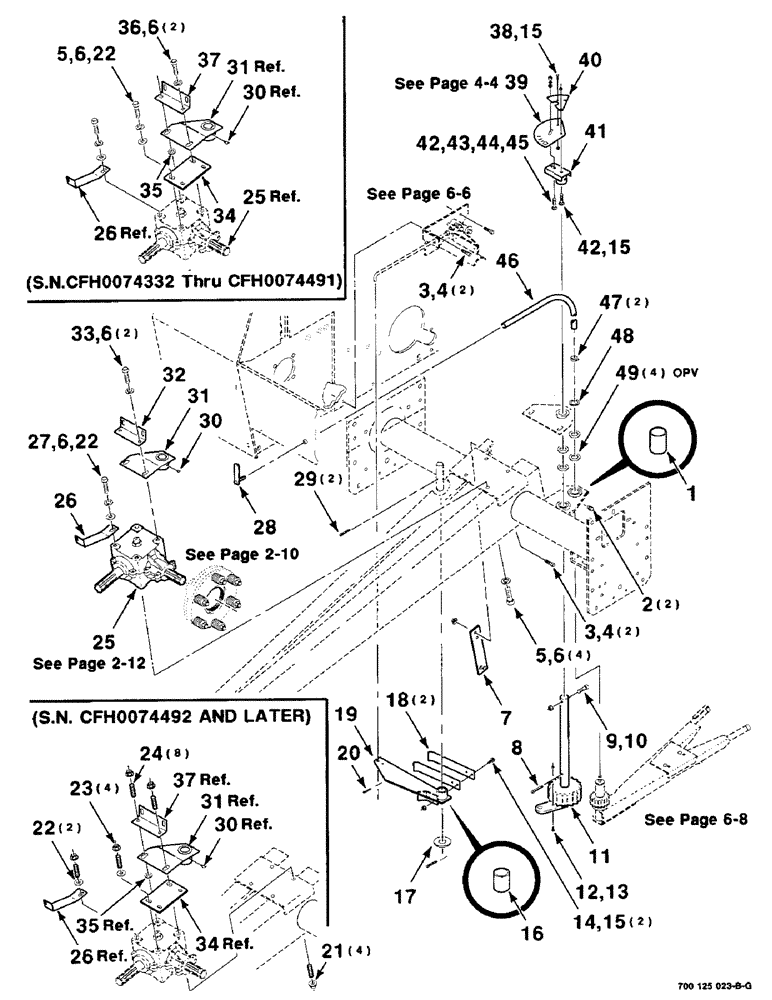

Запчасти Case IH 8465T (6-04) - GEARBOX AND THREADER MOUNTING ASSEMBLIES (14) - BALE CHAMBER

1

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

- oilite

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

5шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

7

700119936

GUIDE

PLATE

1шт.

8

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

9

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8-16 X 1-3/4 HSHCS SPL

1шт.

10

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

11

700115955

SHAFT

WA

1шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

1шт.

13

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

14

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

16

740217

BUSHING

1шт.

17

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 X 10 GAUGE NRMB

1шт.

18

700710074

LARGE PLATE

SPRING - leaf

2шт.

19

700122971

LEVER

WA (includes item 16)

1шт.

20

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

24

700712789

STUD

8шт.

25

700710131

TRANSFER BOX

GEARBOX

1шт.

26

700125101

PLATE

SUPPORT

1шт.

27

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

1шт.

28

700107974

INDICATOR

WA

1шт.

29

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

30

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

31

700126366

SUPPORT

WA

1шт.

32

700127891

SUPPORT

1шт.

33

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

34

700129349

PLATE

1шт.

35

51200240

BUSHING

SPACER

1шт.

36

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

37

700127890

SUPPORT

1шт.

38

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

1шт.

39

700127953

DISC

- switching

1шт.

40

700127003

PLATE

- delay

1шт.

41

700125056

DISC

PLATE WA

1шт.

42

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

43

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

44

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

45

425-105

NUT,5/16"-18, G5

1шт.

46

700707201

HOSE

1шт.

47

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

48

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

49

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

4шт.
