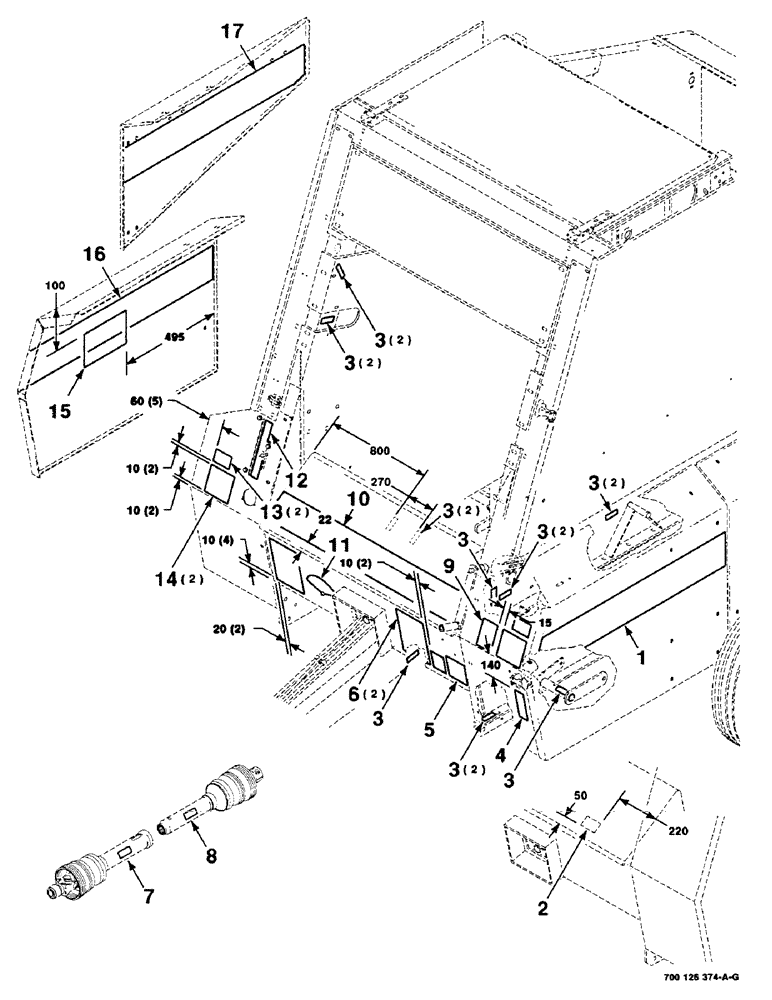

Запчасти Case IH 8465T (9-02) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0074001 THROUGH CFH0074875 Decals & Attachments

Схема запчастей Case IH 8465T - (9-02) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0074001 THROUGH CFH0074875 Decals & Attachments
1
13
4
14
7
3
3
3
2
10
16
6
8
3
3
3
3
5
17
11
9
15
12
3
3

Артикул

Название

Примечание

Количество

1

700710019

DECAL

- comb, left front

1шт.

2

700711916

DECAL

- spring

1шт.

3

7889306

DECAL

- lube

15шт.

4

878694

REFLECTOR

- amber

1шт.

5

878157

DECAL

- notice

1шт.

6

8888398

DECAL

- danger

2шт.

7

80672C1

DECAL

- danger, powerline

1шт.

8

1326528C1

DECAL

- danger, powerline

1шт.

9

700709165

DECAL

- information

1шт.

10

1976066C1

DECAL

- stripe, front

1шт.

11

700707206

DECAL

- dial, indicator

1шт.

12

700706193

DECAL

- dial

1шт.

13

7778202

DECAL

- oil chains

2шт.

14

700714229

DECAL

- be careful

2шт.

15

700710978

DECAL

- information

1шт.

16

700710021

DECAL

- comb, right front

1шт.

17

700711253

DECAL

- comb, right rear

1шт.

Выбрано товаров: 17
