(8-22) - HYDRAULIC CYLINDER ASSEMBLY, TENSIONER & EJECTOR, 700707262 HYD. CYL. COMPLETE, 2" BORE X 12" STROKE

Запчасти Case IH 8465 (8-22) - HYDRAULIC CYLINDER ASSEMBLY, TENSIONER & EJECTOR, 700707262 HYD. CYL. COMPLETE, 2" BORE X 12" STROKE (07) - HYDRAULICS

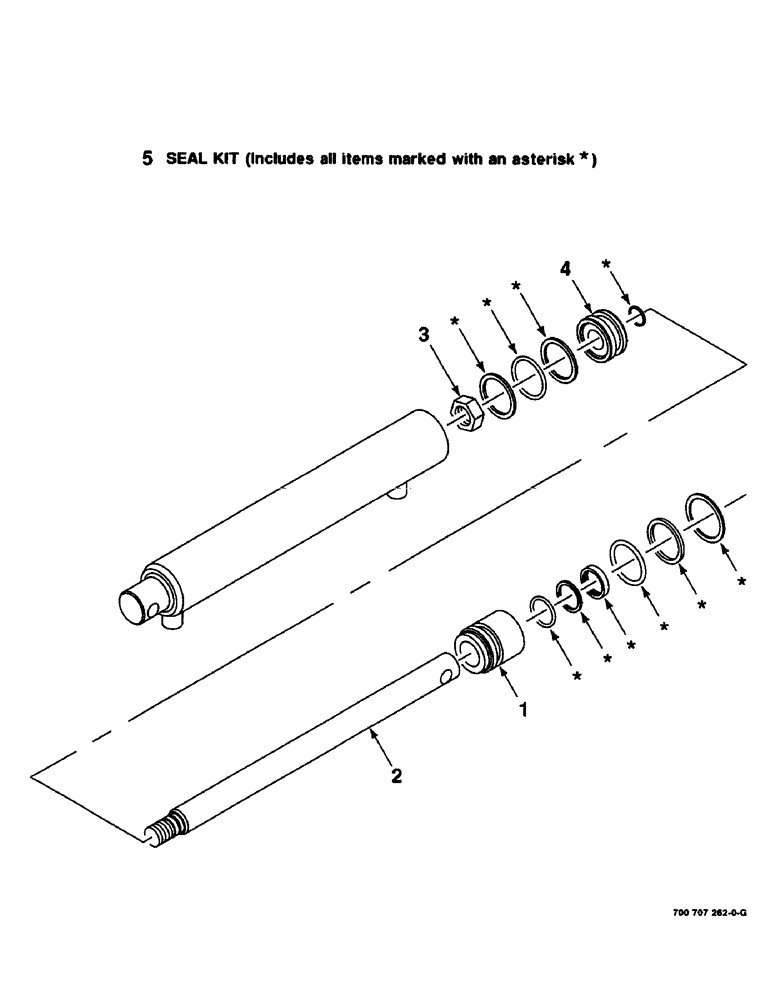

Схема запчастей Case IH 8465 - (8-22) - HYDRAULIC CYLINDER ASSEMBLY, TENSIONER & EJECTOR, 700707262 HYD. CYL. COMPLETE, 2" BORE X 12" STROKE (07) - HYDRAULICS
4
5
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700707262

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2 inch bore x 12 inch stroke)

1шт.

1

700707420

GUIDE

1шт.

2

700707421

ROD

1шт.

3

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

4

700707419

PISTON

1шт.

5

700707423

SEAL KIT

AND O-RING REPAIR KIT

1шт.

700708736

SEAL KIT

AND O-RING REPAIR KIT

1шт.
