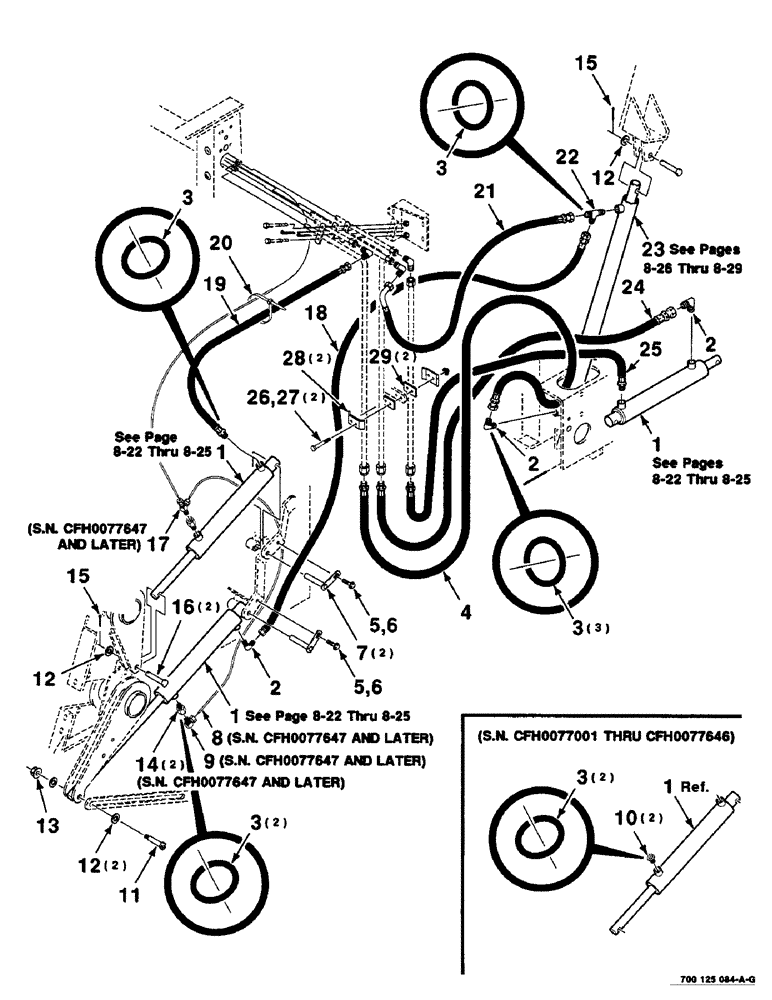

Запчасти Case IH 8465 (8-18) - HYDRAULIC ASSEMBLY, LEFT (07) - HYDRAULICS

1

700707262

CYLINDER

- hydraulic (S.N. CFH0077001 thru CFH0077005)

3шт.

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

CYLINDER - hydraulic (S.N. CFH0077006 and later)

3шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90° (Includes item 3)

3шт.

3

738468

O-RING

9шт.

4

7795487

HOSE

- hydraulic

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

700118823

PIN

WA

2шт.

8

700113862

HOSE,50.00'

Line, , Lube 50 Foot Bulk 50.00'

1шт.

9

746529

ELBOW

- 90°

1шт.

10

700709959

BREATHER

(Includes item 3) (S.N. CFH0077001 thru CFH0077646)

2шт.

11

700708797

HEX SOC SCREW

SCREW - shoulder

1шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

14

218-5090

ADAPTER

(Includes item 3)

2шт.

15

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

16

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

2шт.

17

700713394

TEE

- male run

1шт.

18

7796287

HOSE

- hydraulic

1шт.

19

700707276

HOSE

- hydraulic (Includes item 3)

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

700707391

HOSE

- hydraulic

1шт.

22

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 3) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

23

700710626

CYLINDER

- hydraulic (S.N. CFH0077001 thru CFH0077005)

1шт.

700712159

CYLINDER ASSY.

CYLINDER - hydraulic (S.N. CFH0077006 and later)

1шт.

24

7796204

HOSE

- hydraulic

1шт.

25

700707399

HOSE

- hydraulic

1шт.

26

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4 C

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

28

700116034

CLAMP

2шт.

29

700116114

SHIM

2шт.
