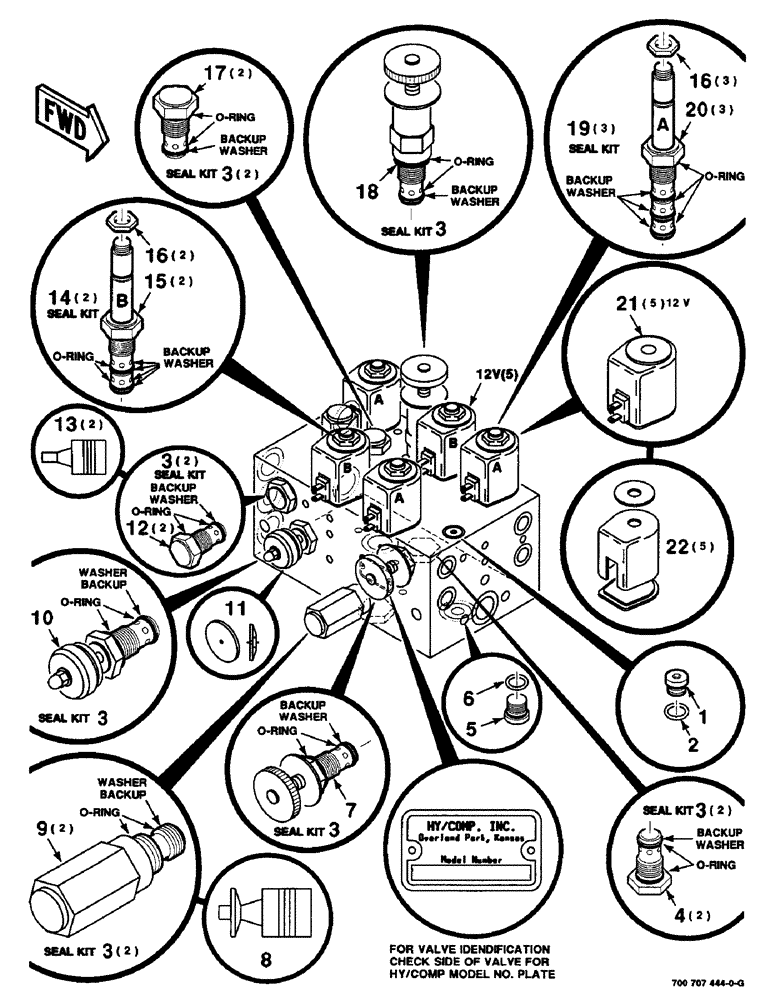

Запчасти Case IH 8465 (8-16) - HYDRAULIC CONTROL VALVE ASSEMBLY, AUTOMATIC, 700707444 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS

700707444

VALVE

HYDRAULIC CONTROL VALVE COMPLETE

1шт.

1

700707835

PLUG

#4 SAE PLUG (Includes item 2)

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

3

149942C1

SEAL KIT

O-RING AND SEAL REPAIR KIT

11шт.

4

700707831

VALVE

- check

2шт.

5

700706604

PLUG

- 8 SAE (Includes item 6)

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

700709569

VALVE

- flow control

1шт.

8

700710890

PISTON

- wing

1шт.

9

700706157

HYDRAULIC VALVE

VALVE - relief (2000 PSI)

2шт.

10

700706158

DRAINCOCK/TAP SUPPLY

VALVE - needle

1шт.

11

700709384

ORIFICE

(.02)

1шт.

12

700707833

VALVE, CHECK

VALVE - check, poppet (15 PSI spring)

2шт.

13

700710891

PISTON

- pilot

2шт.

14

700706152

SEAL KIT

O-RING AND SEAL REPAIR KIT

2шт.

15

700706148

CARTRIDGE

SOLENOID (2-pos., 3-way)

2шт.

16

700706151

NUT

HEX NUT

5шт.

17

700707832

VALVE PRESSURE RELIE

VALVE - check, ball (5 PSI spring)

2шт.

18

700707829

VALVE, PRESSURE RELI

VALVE - relief, knob adj. (2000 PSI)

1шт.

19

700707215

SEAL KIT

O-RING AND SEAL REPAIR KIT

3шт.

20

700706610

CARTRIDGE

SOLENOID (2-pos., 4-way)

3шт.

21

700710176

COIL

(12V DC)

5шт.

22

700707826

REPAIR KIT

KIT - coil housing

5шт.
