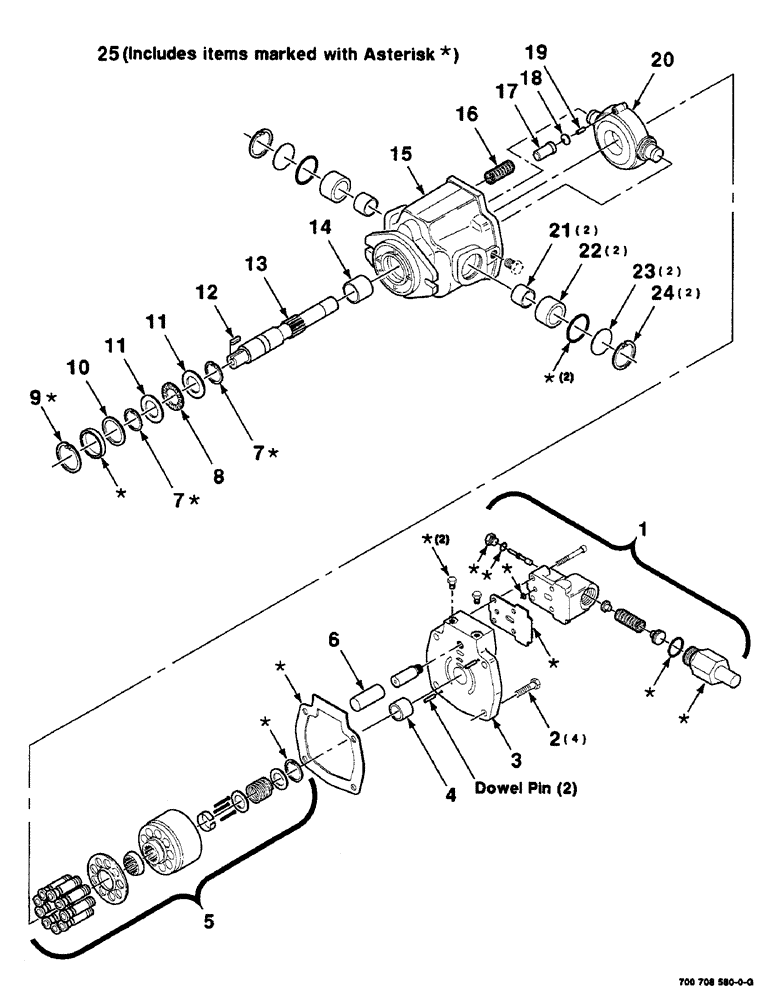

Запчасти Case IH 8465 (8-04) - HYDRAULIC PISTON PUMP ASSEMBLY, 700708580 HYDRAULIC PISTON PUMP ASSEMBLY COMPLETE (07) - HYDRAULICS

700708580

PUMP

PISTON PUMP ASSEMBLY COMPLETE

1шт.

1

700709151

PUMP

COMPENSATOR ASSEMBLY

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

4шт.

3

700709134

BACK PLATE

BACKPLATE

1шт.

4

700709133

BEARING

- backplate

1шт.

5

700709123

KIT

- rotating

1шт.

6

700709125

PISTON

- control

1шт.

7

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

8

700700942

BEARING

- thrust

1шт.

9

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

10

D63314

WASHER

1шт.

11

700700941

RACE

- bearing-thrust

2шт.

12

700709131

KEY

1шт.

13

700709119

SHAFT

- drive

1шт.

14

F62086

NEEDLE BEARING,Needle, 25.4mm ID x 33.34mm OD x 25.4mm W

BEARING - housing

1шт.

15

700709122

HOUSING

1шт.

16

700709130

SPRING

1шт.

17

700709126

COLLAR

- spring

1шт.

18

700709127

BUTTON

- pivot

1шт.

19

700706559

ROLL PIN

1шт.

20

700709128

LARGE PLATE

CAM PLATE

1шт.

21

D61963

BEARING, CONE

RACE - inner

2шт.

22

700709129

BEARING

- trunnion

2шт.

23

D61975

COVER

- trunnion

2шт.

24

100-21150

SNAP RING,1.50", Int, #150

Ring, Snap, , Trunnion 1.50", Int, #150

2шт.

25

700709132

KIT

SEAL AND O-RING KIT Includes: Ref. marked with asterisks in art

1шт.
