(8-02) - HYDRAULIC ASSEMBLY, VALVE TO PUMP, S.N. CFH0077006 AND LATER, S.N. CFH0077001 THROUGH CFH0077005

Запчасти Case IH 8465 (8-02) - HYDRAULIC ASSEMBLY, VALVE TO PUMP, S.N. CFH0077006 AND LATER, S.N. CFH0077001 THROUGH CFH0077005 (07) - HYDRAULICS

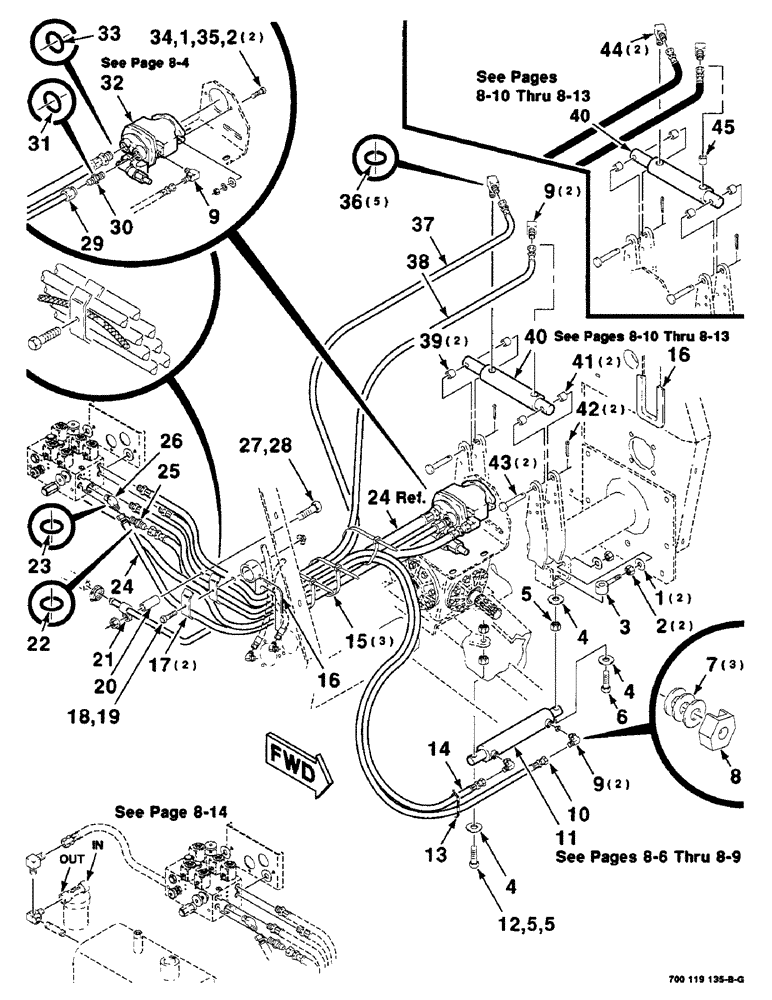

Схема запчастей Case IH 8465 - (8-02) - HYDRAULIC ASSEMBLY, VALVE TO PUMP, S.N. CFH0077006 AND LATER, S.N. CFH0077001 THROUGH CFH0077005 (07) - HYDRAULICS
10
2
34
5
29
41
44
38
45
4
22
2
26
33
37
42
35
40
9
31
12
20
28
30
15
25
11
6
13
9
24
8
7
16
18
4
1
24
3
17
27
40
1
4
32
23
39
36
5
19
43
9
16
5
21
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

2

425-106

NUT,3/8"-16, Cl 5

4шт.

3

700116206

SPECIAL BOLT

DRAWBOLT

1шт.

4

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

5

425-1010

NUT,5/8"-11, G5

3шт.

6

700711989

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8-11 X 4-1/2 C, special

1шт.

7

700118716

WASHER

- special

3шт.

8

H757815

PORT

ORIFICE - .038

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90° (Includes item 36)

5шт.

10

700710983

HYDRAULIC HOSE,6.35 mm ID x 2475.00 mm, SAE 100R1

6.35 mm ID x 2475.00 mm, SAE 100R1

1шт.

11

700709416

CYLINDER

- hydraulic, threader (S.N. CFH0077001 thru CFH0077005)

1шт.

700712122

CYLINDER

- hydraulic, threader (S.N. CFH0077006 and later)

1шт.

12

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, Hex, 5/8"-11 x 2 3/4", G5

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

700707389

HYDRAULIC HOSE,6.35 mm ID x 2275.00 mm, SAE 100R1

6.35 mm ID x 2275.00 mm, SAE 100R1

1шт.

15

7021728

STRAP

TIE - cable

3шт.

16

700117735

ADHESIVE STRIP

TRIM

2шт.

17

700116123

CLAMP

2шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

20

6501076

SPACER

1шт.

21

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

700709241

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm, SAE 100R1

12.70 mm ID x 1400.00 mm, SAE 100R1

1шт.

25

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR (Incl. item 22)

1шт.

26

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Incl. item 23) 45º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

27

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

28

231-5146

FLANGE NUT,3/8"-16

1шт.

29

700708999

TUBE,25.4 mm OD, 783, 400 mm Length

LINE - hydraulic

1шт.

30

218-5047

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

CONNECTOR - flared (Includes item 31)

1шт.

31

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

32

700708580

PUMP

- piston

1шт.

33

738484

O-RING

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

738468

O-RING

5шт.

37

700708944

HYDRAULIC HOSE,6.35 mm ID x 1875.00 mm, SAE 100R1

6.35 mm ID x 1875.00 mm, SAE 100R1

1шт.

38

700707387

HYDRAULIC HOSE,6.35 mm ID x 1825.00 mm, SAE 100R1

6.35 mm ID x 1825.00 mm, SAE 100R1

1шт.

39

320993R1

SPACER,7/8" Tube x 1/2"

2шт.

40

7075625

CYLINDER

- hydraulic, clutch (S.N. CFH0077001 thru CFH0077005)

1шт.

700711910

CYLINDER ASSY.

CYLINDER - hydraulic, clutch (S.N. CFH0077006 and later)

1шт.

41

254409

SPACER

2шт.

42

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

43

863498

CLEVIS PIN

5/8 X 3-1/2 CLEVIS PIN

2шт.

44

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90°

2шт.

45

700119118

SPACER

1шт.
