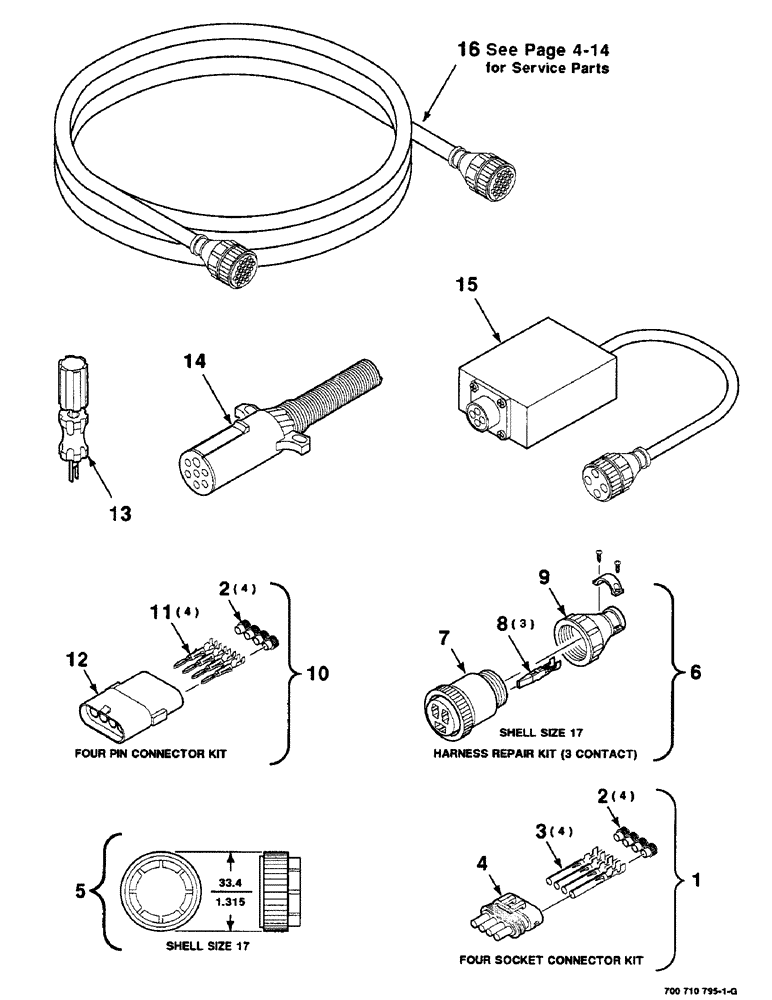

Запчасти Case IH 8465 (4-16) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL

1

700707002

REPAIR KIT

FOUR WAY - connector repair kit, female (Includes items 2, 3 and 4)

1шт.

2

700706400

PLUG

SEAL

1шт.

3

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- socket (18-20 gauge wire)

1шт.

4

700708963

WIRE CONNECTOR

FOUR WAY - connector, female

1шт.

5

1301191C1

CONNECTION

RING - coupling (#17 plug arrangement)

1шт.

6

1714005

PACKAGE,SERVICE

KIT - harness repair (Female end) (Includes items 7, 8 and 9)

1шт.

7

700709705

WIRE CONNECTOR

CONNECTOR - 3 socket, female (Includes item 8)

1шт.

8

700710620

TERMINAL

CONTACT - female (16-12 gauge)

1шт.

9

700708756

CLAMP

(Shell size 17)

1шт.

10

700709354

REPAIR KIT

FOUR WAY - shroud connector repair kit (Includes items 2, 11 and 12)

1шт.

11

700706401

TERMINAL

PIN - terminal (18-20 gauge wire)

1шт.

12

700708964

WIRE CONNECTOR

FOUR WAY - connector, male

1шт.

13

700707014

TERMINAL CONNECTOR

TOOL CONNECTOR REPAIR

1шт.

14

700715341

PLUG

- 7 pin domestic

1шт.

15

700715718

FILTER

- electronic noise

1шт.

16

700712135

WIRE HARNESS

HARNESS - wire

1шт.
