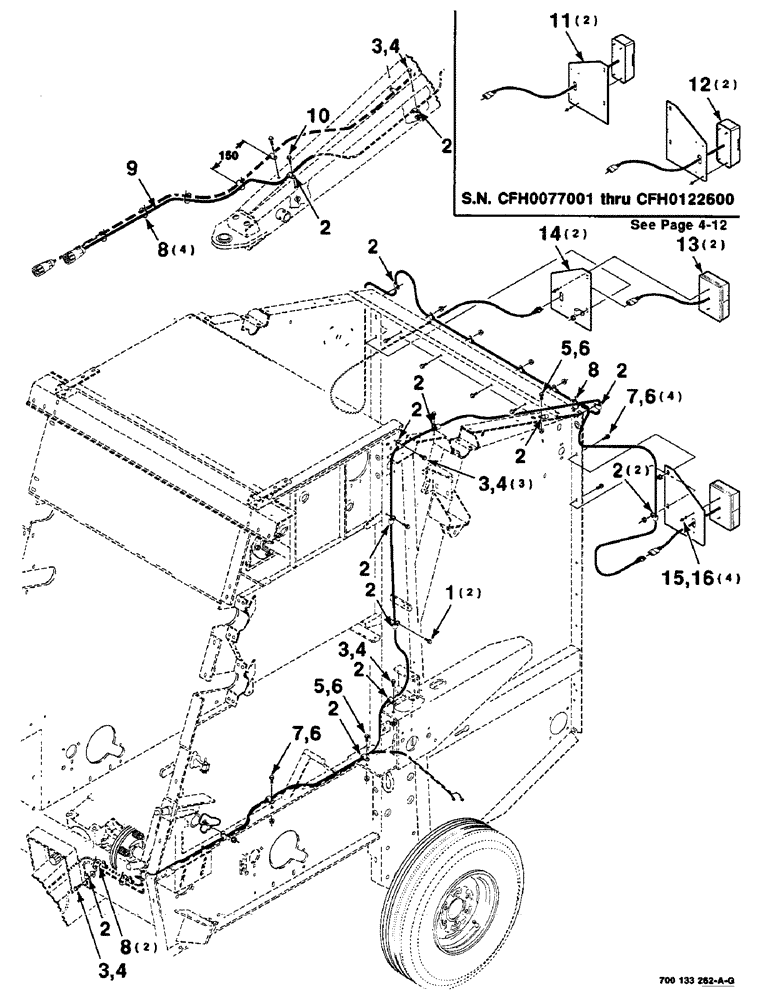

Запчасти Case IH 8465 (4-10) - LIGHTING ASSEMBLY (06) - ELECTRICAL

1

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

2шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

14шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN

6шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

6

231-5146

FLANGE NUT,3/8"-16

7шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

5шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

9

700715352

HARNESS

- wire

1шт.

10

77002012

3/8-16 X 1 HWHTCTS

1шт.

11

700131900

PLATE

- light (S.N. CFH0077001 thru CFH0122600)

2шт.

12

700714721

LAMP

LIGHT - tail (S.N. CFH0077001 thru CFH0122600)

2шт.

13

700716461

TAIL LAMP

LIGHT - tail (S.N. CFH0122601 and later)

2шт.

14

700147097

PLATE

- light (S.N. CFH0126601 and later)

2шт.

15

825-1405

NUT,M5, Cl 8

4шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.
