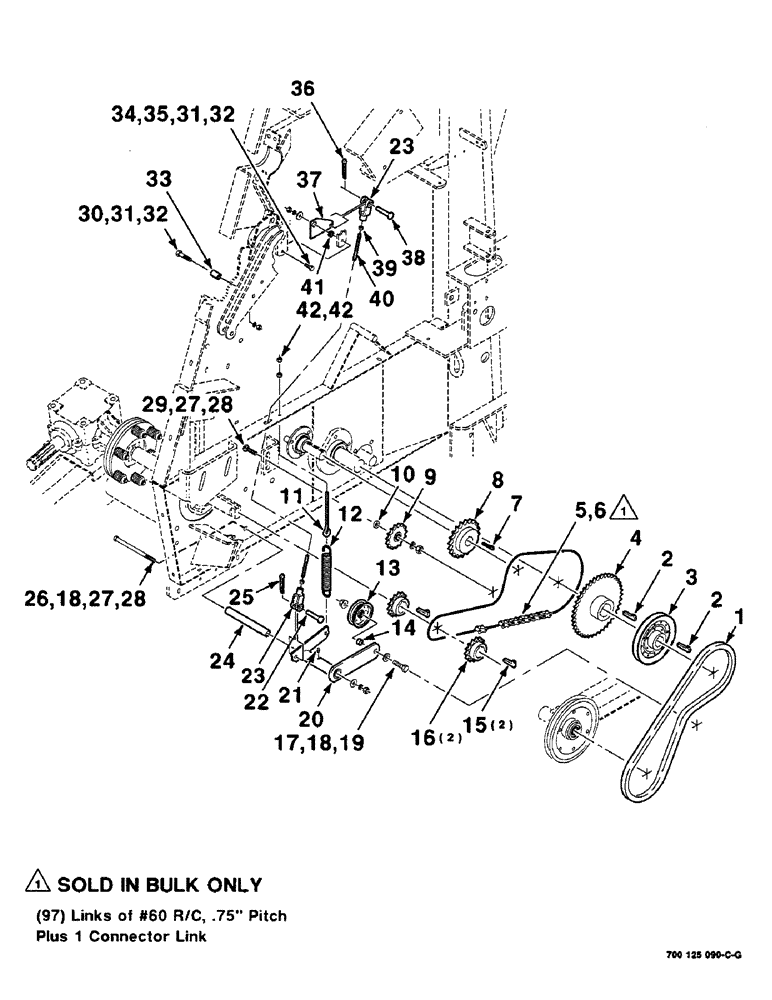

Запчасти Case IH 8465 (2-18) - ROLLER DRIVE ASSEMBLY, PICKUP AND LOWER Driveline

1

57596

BELT

V-BELT

1шт.

2

861088

BUCKET TOOTH KEY

1/2 X 2 KEY - gib

2шт.

3

700116042

SHEAVE

WA

1шт.

4

700126376

SPROCKET ASSY.

SPROCKET WA - 60B39 tooth

1шт.

5

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

6

700710901

BUSHING

LINK - connector, #60 (W/Spring clip)

1шт.

7

249-1

KEY

1/4 X 1-3/4 KEY - gib

1шт.

8

85951

SPROCKET ASSY.

SPROCKET - 60B20 tooth

1шт.

9

541857R92

SPROCKET,15T

- idler, 15 tooth

1шт.

10

6229256

SPACER

1шт.

11

766394

CONSOLE

DRAWBOLT

1шт.

12

858167

SPRING

- extension

1шт.

13

662958R91

PULLEY

IDLER - flat

1шт.

14

254409

SPACER

1шт.

15

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 X 1-3/4 KEY - gib

2шт.

16

7850720

PINION

SPROCKET - 60B14 tooth

2шт.

17

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

1шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

19

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

20

700116045

LEVER

WA - idler

1шт.

21

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

22

14145H

CLEVIS PIN,1/2" x 2.094"

1/2 X 1-3/4 CLEVIS PIN

1шт.

23

51200163

CLEVIS

2шт.

24

700116050

PIVOT ASSY.,25.4 mm OD, 204 mm Length

TUBE - pivot

1шт.

25

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

26

413-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

5/8-11 X 9-1/2 B

1шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

425-1010

NUT,5/8"-11, G5

2шт.

29

111-622

CARRIAGE BOLT,Short NK 5/8" -11 x 2 1/4", G5

5/8-11 X 2-1/4 RHSNB

1шт.

30

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

33

6234710

SPACER

1шт.

34

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

35

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

1шт.

36

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

37

700116051

PLATE

1шт.

38

427-8150

CLEVIS PIN,1/2" x 1 1/2"

1/2X1.500 1.281 HD/HOLE CLEVIS ZND

1шт.

39

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

40

700116052

ROD,THREADED

ROD

1шт.

41

6582696

SPACER

BUSHING

1шт.

42

425-106

NUT,3/8"-16, Cl 5

2шт.
