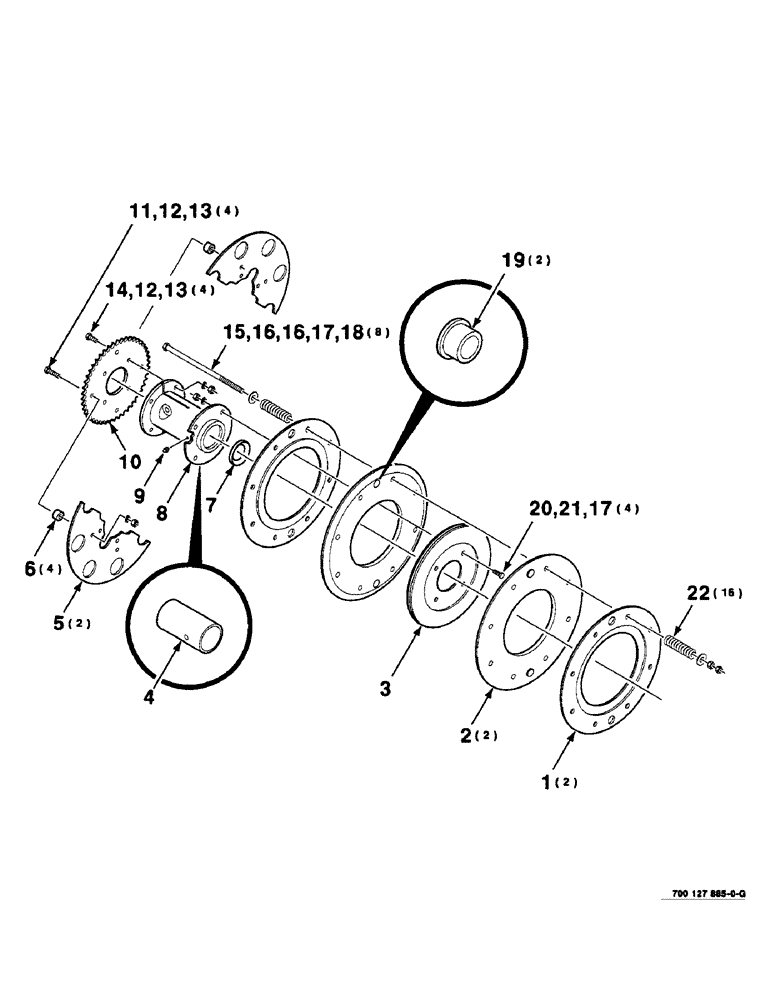

Запчасти Case IH 8465 (2-16) - CLUTCH ASSEMBLY, DRIVE SHAFT Driveline

1

700127888

DISC

- pressure

2шт.

2

700127884

DISC

ASSEMBLY (Includes item 19)

2шт.

3

700711087

DISC

- friction

1шт.

4

700712787

BRONZE BUSHING

BEARING - bronze

1шт.

5

700126947

DISC

- half

2шт.

6

700128331

SPACER

4шт.

7

700708327

SEAL

1шт.

8

700128323

FLANGE

WA (Includes item 4)

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

10

700128329

SPROCKET ASSY.

SPROCKET - 40A46 tooth

1шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

13

425-105

NUT,5/16"-18, G5

8шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

15

7773336

BOLT,3/8" - 16 x 10", Grade 5

3/8-16 X 10 B-SPECIAL

8шт.

16

495-21044

WASHER,3/8"

16шт.

17

425-106

NUT,3/8"-16, Cl 5

12шт.

18

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HEX JAM NUT GR2

8шт.

19

700713280

BUSHING

- shoulder

2шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

700712535

SPRING

- compression

16шт.
