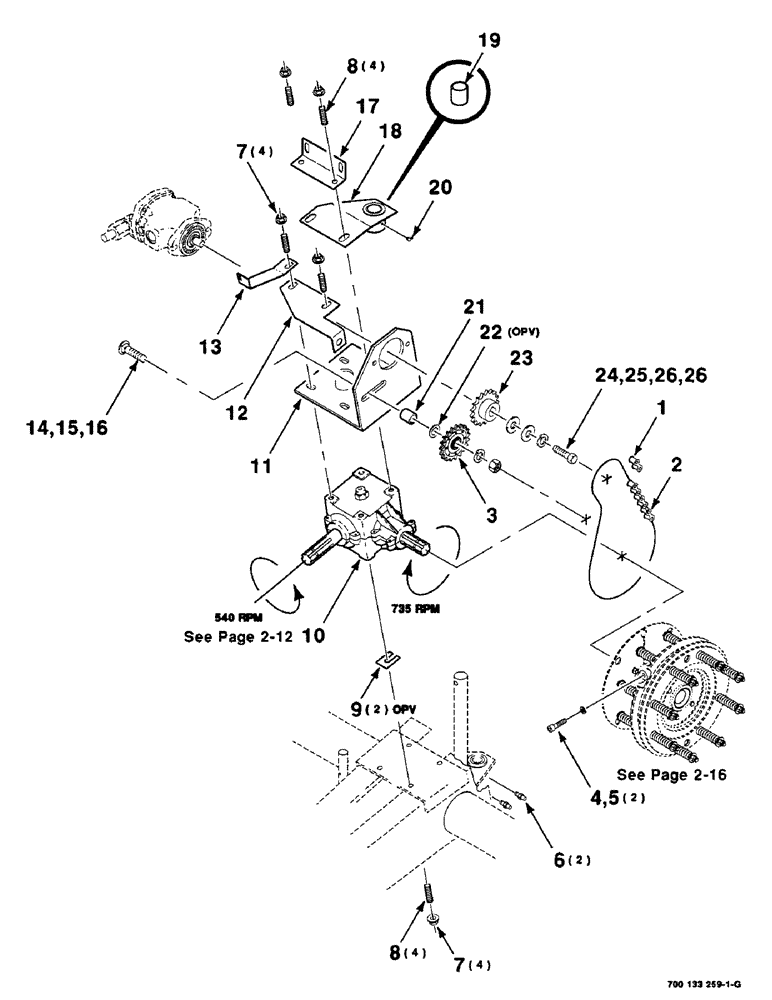

Запчасти Case IH 8465 (2-10) - PUMP DRIVE AND CONTROL LINKAGE ASSEMBLY, HYDRAULIC Driveline

1

700708338

LINK

#40 CONNECTOR LINK

1шт.

2

700707710

CHAIN (AG)

#40 CHAIN - roller, o-ring

1шт.

3

47977

SPROCKET ASSY.

SPROCKET - idler, 18 tooth

1шт.

4

61-832

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 X 2 HSHCS SPECIAL

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

8

700712789

STUD

1/2-13 STUD

8шт.

9

700101219

ADJUSTING PLATE

SHIM

2шт.

10

700710131

TRANSFER BOX

GEARBOX

1шт.

11

700129354

MOUNTING PARTS

MOUNT - pump

1шт.

12

700127889

MOUNTING PLATE

MOUNT - sensor

1шт.

13

700125101

PLATE

SUPPORT

1шт.

14

111-622

CARRIAGE BOLT,Short NK 5/8" -11 x 2 1/4", G5

5/8-11 X 2-1/4 RHSNB

1шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

425-1010

NUT,5/8"-11, G5

1шт.

17

700127890

SUPPORT

1шт.

18

700126366

SUPPORT

WA (Includes item 19)

1шт.

19

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

- oilite

1шт.

20

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45° ZERK

1шт.

21

700118822

SPACER

1шт.

22

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

1шт.

23

700708998

SPROCKET ASSY.

SPROCKET - 40B17 tooth

1шт.

24

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.
