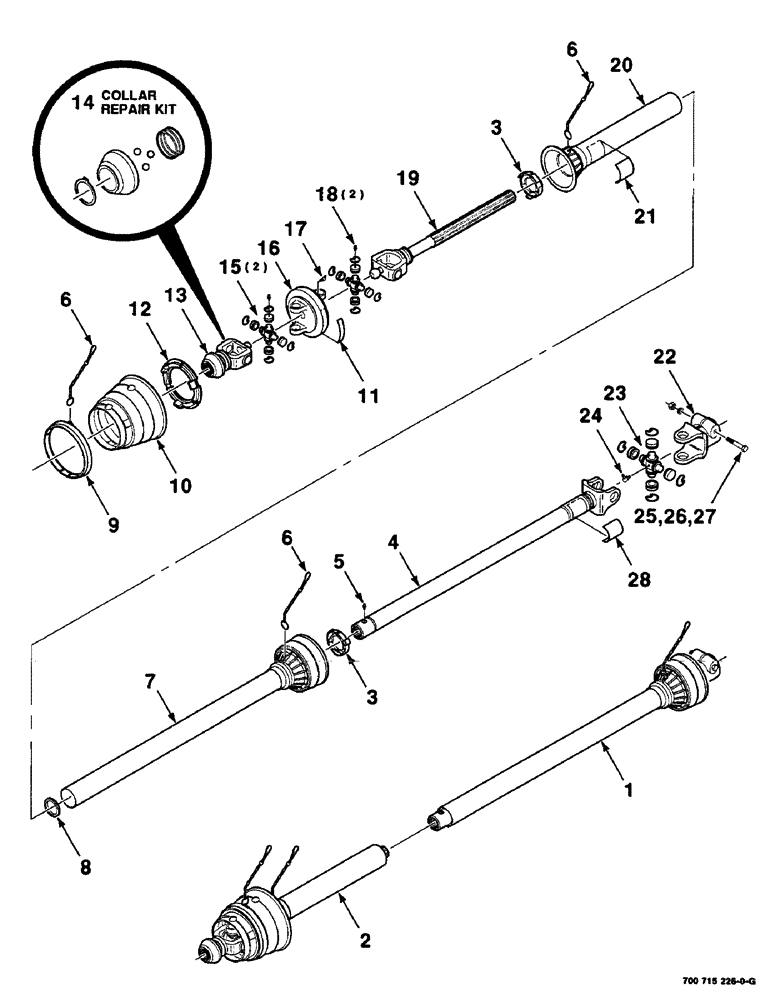

Запчасти Case IH 8465 (2-06) - IMPLEMENT DRIVELINE ASSEMBLY, 1000 RPM, NEAPCO, SERIAL NUMBER CFH0078355 AND LATER Driveline

1

NLS

NO LONGER SERVICED

HALF ASSEMBLY - implement

1шт.

No Longer Serviced - Replaced by 87588653 Complete PTO Assembly, Incl Ref 1, 2

1шт.

2

NLS

NO LONGER SERVICED

HALF ASSEMBLY - tractor

1шт.

No Longer Serviced - Replaced by 87588653 Complete PTO Assembly, Incl Ref 1, 2

1шт.

3

700713781

GUARD

BEARING - shield

2шт.

4

700714286

YOKE

TUBE & SLEEVE

1шт.

5

700713833

LUBE NIPPLE,3/16" x 25/64", drivetech

NIPPLE, LUBE, 3/16" x 25/64", drivetech

1шт.

6

700714256

CHAIN (AG)

CHAIN

3шт.

7

700714294

GUARD

SHIELD - inner

1шт.

8

700709718

NYLON BEARING

BEARING - nylon

1шт.

9

700713774

RING, SNAP

RING - cv, outer

1шт.

10

700713778

CONE

- cv

1шт.

11

700714285

DECAL

LABEL - cv danger

1шт.

12

700713775

COLLAR

BEARING - cv

1шт.

13

700713788

YOKE

ASSEMBLY - tractor (1-3/8 x 21 spline)

1шт.

700714128

BODY

YOKE ASSEMBLY - tractor (1-3/4 x 20 spline)

1шт.

14

700714200

KIT

SLIDE COLLAR REPAIR KIT - q.d. (1-3/8" spline)

1шт.

700714002

PACKAGE

SLIDE COLLAR REPAIR KIT - q.d. (1-3/4" spline)

1шт.

15

700713773

KIT

CROSS AND BEARING KIT

2шт.

16

700713777

HOUSING

ASSEMBLY - cv

1шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45° ZERK

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

19

700713786

YOKE

AND SHAFT

1шт.

20

700714728

GUARD

SHIELD - outer

1шт.

21

1326528C1

DECAL

- danger

1шт.

22

8802910

CLAMP

YOKE - clamp

1шт.

23

845198

KIT

CROSS AND BEARING KIT

1шт.

24

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65° ZERK

1шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

28

80672C1

DECAL

- danger

1шт.
