(9-94) - MESH WRAP OVERRUNNING CLUTCH KIT, 700129419 MESH WRAP OVERRUNNING CLUTCH KIT COMPLETE

Запчасти Case IH 8465 (9-94) - MESH WRAP OVERRUNNING CLUTCH KIT, 700129419 MESH WRAP OVERRUNNING CLUTCH KIT COMPLETE Decals & Attachments

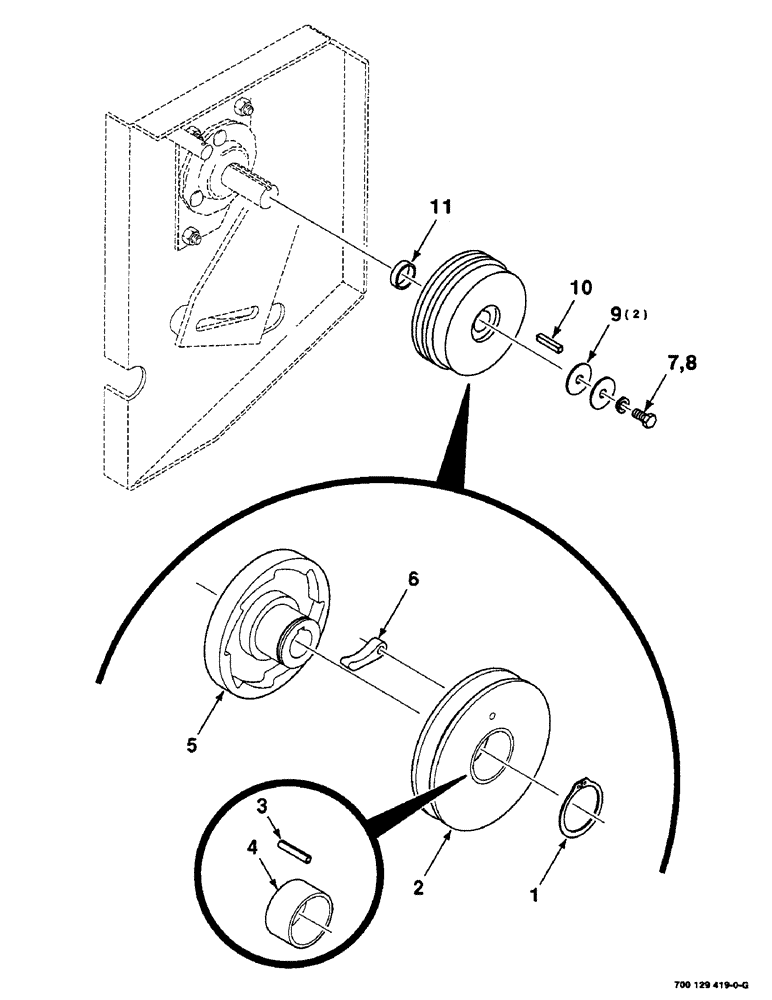

Схема запчастей Case IH 8465 - (9-94) - MESH WRAP OVERRUNNING CLUTCH KIT, 700129419 MESH WRAP OVERRUNNING CLUTCH KIT COMPLETE Decals & Attachments
6
5
7
3
1
11
2
4
8
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700129419

CLUTCH

OVERRUNNING CLUTCH KIT COMPLETE

1шт.

1

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

2

700127931

SHEAVE

ASSEMBLY (Includes items 3 and 4)

1шт.

3

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

4

700713302

BRONZE BUSHING,44.552 mm ID x 50.902 mm OD x 25.527 mm

BEARING - bronze

1шт.

5

700127930

HUB

- ratchet

1шт.

6

700127932

PAWL

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

700710049

WASHER

3/8 FENDER WASHER

2шт.

10

Q10

KEY,1/4" Sq x 1 3/8"

1/4 X 1-3/8 KEY

1шт.

11

700127933

SPACER

1шт.
